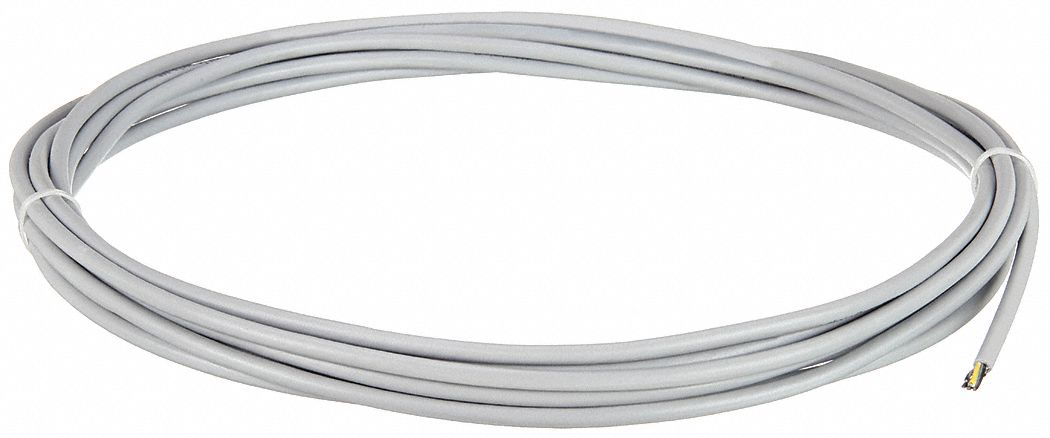

Chainflex 3G-OTH-47436 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-47436 CHAINFLEX Control Cable: 18 AWG, 5 Conductors, 100 ft, PUR Jacket, 1,000 V (MPN CF77-UL-07-05-100). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Coolant Resistant; Standards: cRUus.
Brand: Chainflex

The CHAINFLEX Control Cable (SKU 24C016, MPN CF77-UL-07-05-100) is a continuous flexing control cable from the Chainflex series. It features 18 AWG, 5 conductors, a PUR jacket, and a 1,000 V rating, with copper conductors and a single conductor configuration. This cable includes a ground, is coolant resistant, and meets cRUus standards, with minimum bend radius factors of 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Cable Series	CF77-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Coolant Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF77-UL-07-05-100
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
