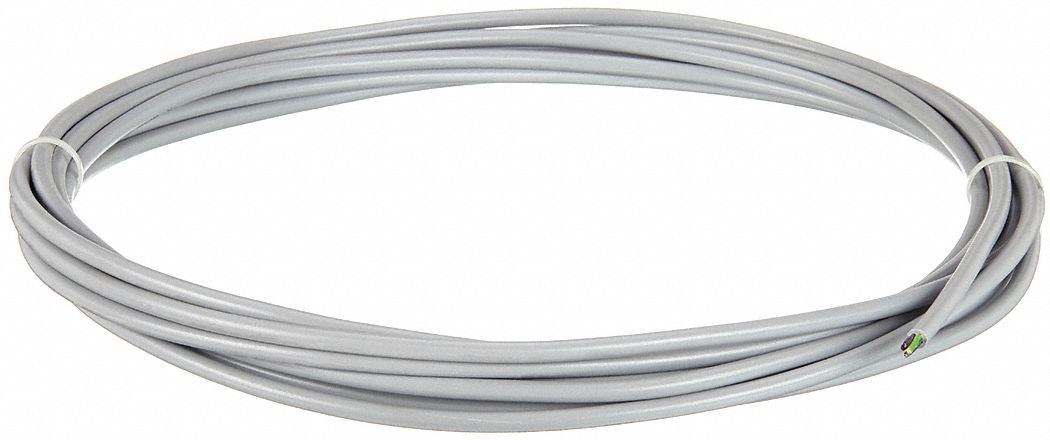

Chainflex 3G-OTH-49808 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-49808 CHAINFLEX Control Cable: 14 AWG, 4 Conductors, 100 ft, PUR Jacket, 1,000 V (MPN CF77-UL-25-04-100). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Notch Resistance; Standards: CE.
Brand: Chainflex

The CHAINFLEX Control Cable (SKU 24C027) is a continuous flexing control cable from the Chainflex series, model CF77-UL. This 14 AWG, 4-conductor cable features a PUR jacket, 1,000 V rating, and includes a ground conductor. It offers notch resistance and meets CE standards, with minimum bend radius factors of 4 x OD (fixed), 5 x OD (flexible), and 6.8 x OD (e-chain).

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF77-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Notch Resistance
Conductor Configuration	Single
Manufacturer Part Number	CF77-UL-25-04-100
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
