Chainflex 3G-OTH-52691 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-52691 CHAINFLEX Control Cable: 18 AWG, 7 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF78-UL-07-07-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Flame Retardant; Standards: CE.
Brand: Chainflex

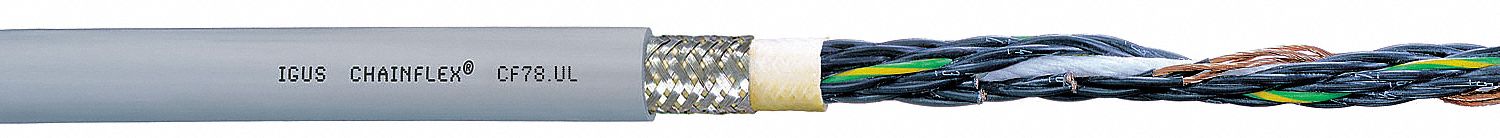

The CHAINFLEX Control Cable: 18 AWG is a continuous flexing control cable from the Chainflex series, model CF78-UL-07-07-1. It features 7 conductors of 18 AWG copper with a PUR jacket, rated at 1,000 V, and includes a ground conductor. The cable is CE certified, flame retardant, and offers minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PUR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Conductors	7
Cable Series	CF78-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF78-UL-07-07-1
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
