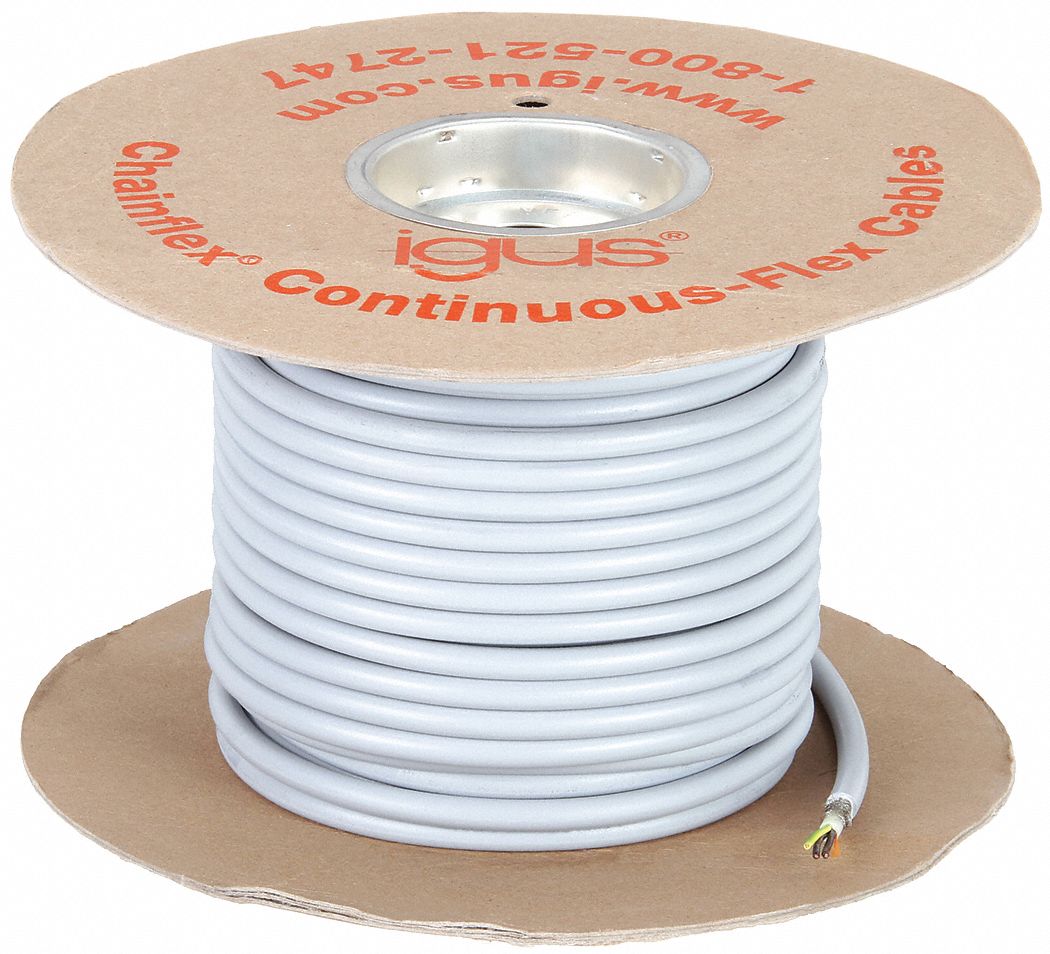

Chainflex 3G-OTH-46164 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-46164 CHAINFLEX Control Cable: 20 AWG, 5 Conductors, 25 ft, PUR Jacket, 1,000 V (MPN CF78-UL-05-05-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Notch Resistance; Standards: cRUus.
Brand: Chainflex

The CHAINFLEX Control Cable (SKU 24C044, MPN CF78-UL-05-05-25) is a continuous flexing control cable from the Chainflex series. This 25-foot cable features 5 conductors of 20 AWG copper wire with a PUR jacket, rated at 1,000 V, and includes a ground conductor. It meets cRUus standards and offers notch resistance, with minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Cable Series	CF78-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Notch Resistance
Conductor Configuration	Single
Manufacturer Part Number	CF78-UL-05-05-25
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
