Chainflex 3G-OTH-46352 — Spesifikasi Teknis

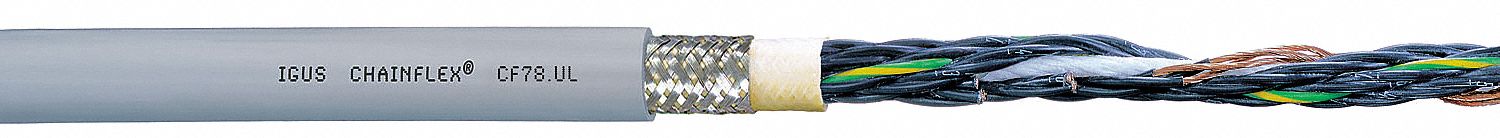

The CHAINFLEX Control Cable (SKU 24C045, MPN CF78-UL-05-07-25) is a continuous flexing control cable from the Chainflex series. It features 20 AWG, 7 conductors, a PUR jacket, and a 1,000 V rating, with copper conductors and a single conductor configuration. This cable includes a ground, is oil and grease resistant, and meets cRUus standards, with minimum bend radius factors of 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | CHAINFLEX |
| Series | Chainflex |
| Standards | cRUus |
| Cable Series | CF78-UL |
| Product Type | Control Cable |
| Includes Ground | Yes |
| Conductor Material | Copper |
| Conductor Color Code | Black with White Numbers |
| Resistance Properties | Oil and Grease Resistant |
| Conductor Configuration | Single |
| Manufacturer Part Number | CF78-UL-05-07-25 |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Minimum Bend Radius Factor - E-Chain | 6.8 x OD |
| Minimum Bend Radius Factor - Flexible | 5 x OD |
