Chainflex 3G-OTH-53199 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-53199 CHAINFLEX Control Cable: 16 AWG, 4 Conductors, 100 ft, PUR Jacket, 1,000 V (MPN CF78-UL-15-04-100). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Flame Retardant; Standards: CE.
Brand: Chainflex

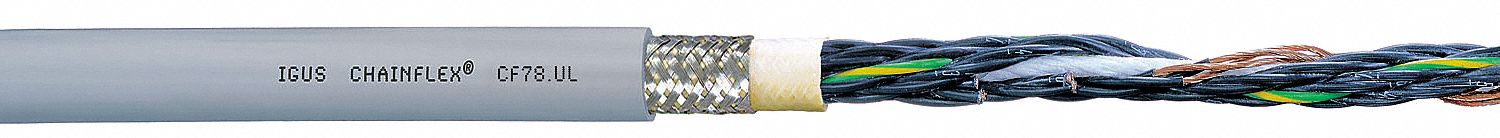

The CHAINFLEX CF78-UL Control Cable is a continuous flexing control cable with 16 AWG, 4 conductors, a PUR jacket, and a 1,000 V rating. It features copper single conductors with black/white numbering, includes a ground, and is flame retardant. Minimum bend radius factors are 4 x OD (fixed), 5 x OD (flexible), and 6.8 x OD (e-chain). This CE-certified cable is supplied in a 100 ft length.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF78-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF78-UL-15-04-100
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
