Chainflex 3G-OTH-45774 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-45774 CHAINFLEX Control Cable: 22 AWG, 5 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-03-05-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Flame Retardant; Standards: DIN 47100.
Brand: Chainflex

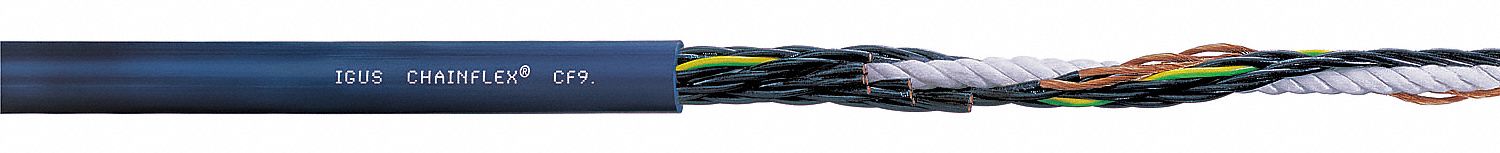

The CHAINFLEX Control Cable: 22 AWG is a continuous flexing control cable from the Chainflex CF9 series, featuring 5 conductors of single copper wire with a TPR jacket and 300 V rating. It includes a ground conductor, is flame retardant, and complies with DIN 47100 standards. Minimum bend radius factors are 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, TPR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	DIN 47100
Conductors	5
Cable Series	CF9
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF9-03-05-1
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
