Name: Chainflex 3G-OTH-45944 CHAINFLEX Control Cable: 20 AWG, 5 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-05-05-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Notch Resistance; Standards: DIN 47100.
Brand: Chainflex

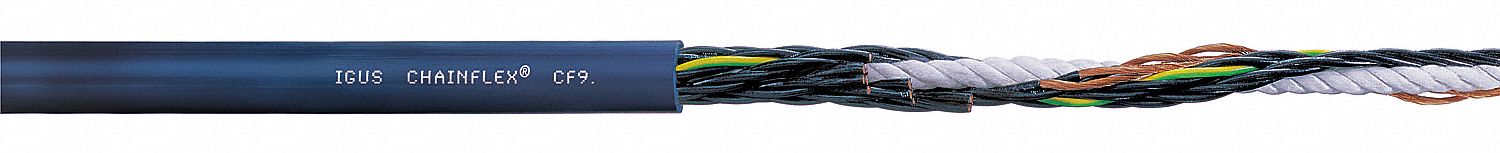

The CHAINFLEX Control Cable: 20 AWG (SKU 24C083, MPN CF9-05-05-1) is a continuous flexing control cable from the Chainflex CF9 series, featuring 5 conductors of copper with a TPR jacket rated at 300 V. It includes a ground conductor, conforms to DIN 47100, and offers notch resistance. Minimum bend radius factors are 3 x OD for fixed installation, 4 x OD for flexible use, and 5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, TPR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	DIN 47100
Conductors	5
Cable Series	CF9
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Notch Resistance
Conductor Configuration	Single
Manufacturer Part Number	CF9-05-05-1
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
