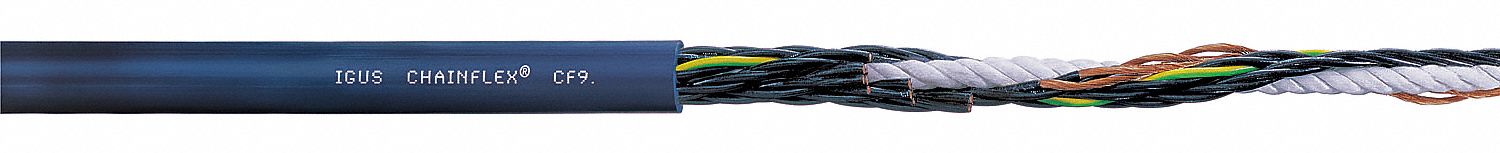

Chainflex 3G-OTH-53433 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-53433 CHAINFLEX Control Cable: 18 AWG, 7 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-07-07-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CE.
Brand: Chainflex

The CHAINFLEX Control Cable: 18 AWG is a continuous flexing control cable from the Chainflex CF9 series. This 7-conductor, single-configuration copper cable features a TPR jacket, includes a ground, and is rated 300 V with CE standards. It offers oil and grease resistance and minimum bend radius factors of 3 x OD (fixed), 4 x OD (flexible), and 5 x OD (e-chain).

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, TPR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Conductors	7
Cable Series	CF9
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF9-07-07-1
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
