Chainflex 3G-OTH-53655 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-53655 CHAINFLEX Control Cable: 14 AWG, 12 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-25-12-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Notch Resistance; Standards: CE.
Brand: Chainflex

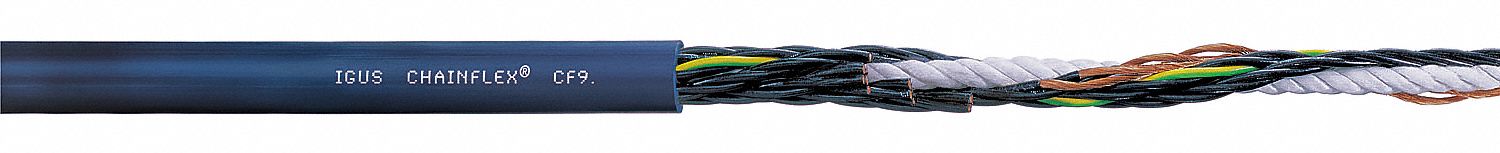

The CHAINFLEX Control Cable: 14 AWG is a continuous flexing control cable from the Chainflex CF9 series, featuring 12 conductors of single copper wire with a TPR jacket rated at 300 V. It includes a ground conductor, offers notch resistance, and meets CE standards. The cable's minimum bend radius factors are 3 x OD for fixed installation, 4 x OD for flexible use, and 5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, TPR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Conductors	12
Cable Series	CF9
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Notch Resistance
Conductor Configuration	Single
Manufacturer Part Number	CF9-25-12-1
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
