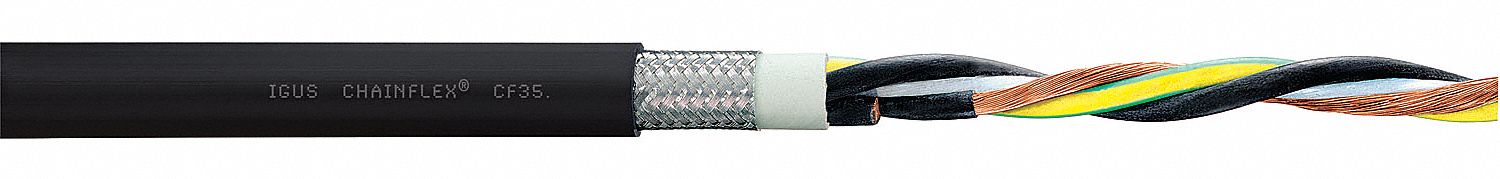

Chainflex 3G-OTH-45259 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-45259 CHAINFLEX Motor Cable: 14 AWG, 4 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF35-25-04-1). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Notch Resistance; Standards: cRUus.
Brand: Chainflex

The CHAINFLEX Motor Cable: 14 AWG is a continuous flexing power cable for VFDs from the Chainflex CF35-UL series. This 4-conductor, single-configuration copper cable includes a ground conductor, features a TPR jacket rated at 1,000 V, and meets cRUus standards. It offers notch resistance with minimum bend radius factors of 4 x OD for fixed, 6 x OD for flexible, and 7.5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Conductors	4
Cable Series	CF35-UL
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Notch Resistance
Conductor Configuration	Single
Manufacturer Part Number	CF35-25-04-1
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
