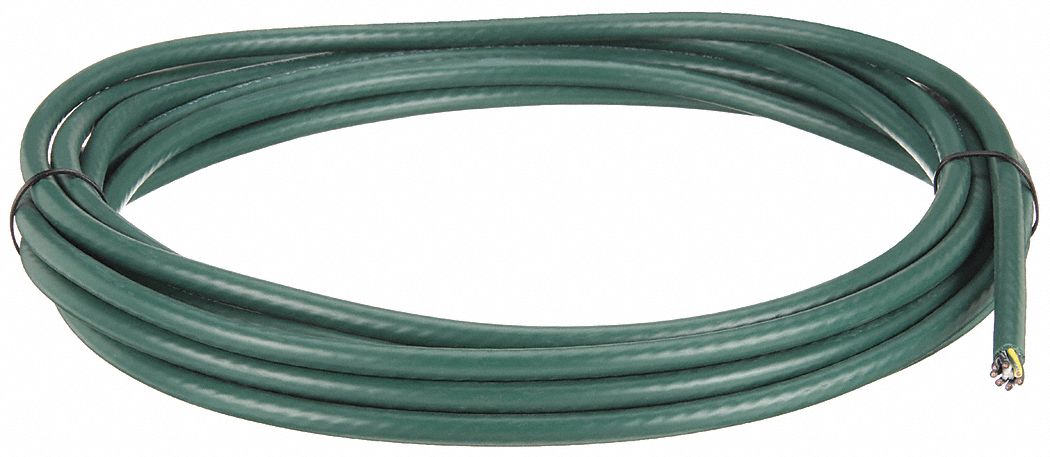

Chainflex 3G-OTH-46276 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-46276 CHAINFLEX Control Cable: 20 AWG, 7 Conductors, Order by the Foot, PVC Jacket, 600 V (MPN CF5-05-07). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Heat Resistant; Standards: CE.
Brand: Chainflex

The CHAINFLEX Control Cable: 20 AWG (SKU 2TYW9) is a continuous flexing control cable from the Chainflex CF5 series, featuring 7 conductors of single copper wire with a PVC jacket and a 600 V rating. It includes a ground conductor, is heat resistant, and meets CE standards. The cable offers minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Conductors	7
Cable Series	CF5
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Heat Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF5-05-07
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
