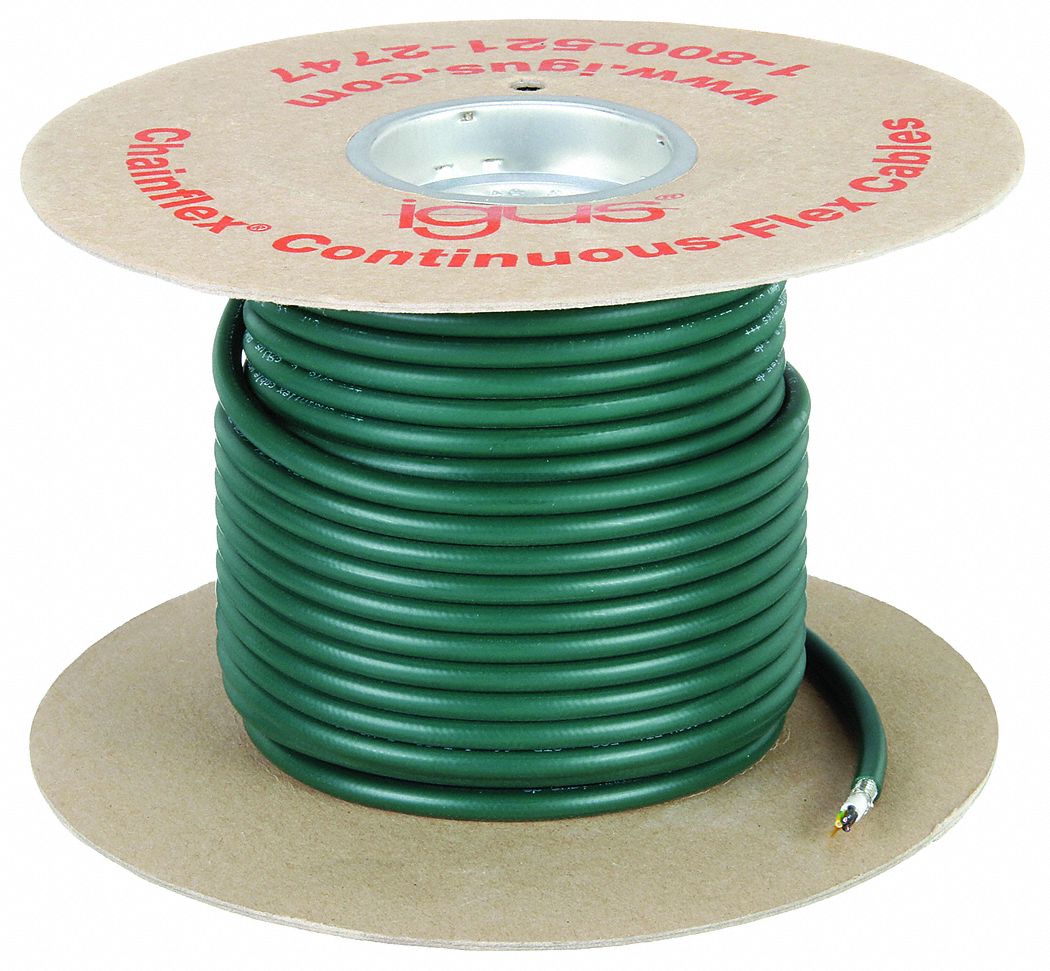

Chainflex 3G-OTH-54526 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-54526 CHAINFLEX Control Cable: 18 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 600 V (MPN CF6-07-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Oil and Grease Resistant; Standards: cRUus.
Brand: Chainflex

The CHAINFLEX Control Cable: 18 AWG is a continuous flexing control cable from the Chainflex CF6 series. This 4-conductor, single-conductor-configuration cable features copper conductors with black-and-white numbering, a PVC jacket, and a 600 V rating. It is oil and grease resistant, includes a ground, and meets cRUus standards with minimum bend radius factors of 4 x OD (fixed), 5 x OD (flexible), and 6.8 x OD (e-chain).

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Conductors	4
Cable Series	CF6
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF6-07-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
