Chainflex 3G-OTH-53652 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-53652 CHAINFLEX Control Cable: 16 AWG, 25 Conductors, Order by the Foot, PVC Jacket, 600 V (MPN CF6-15-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Oil and Grease Resistant; Standards: cRUus.
Brand: Chainflex

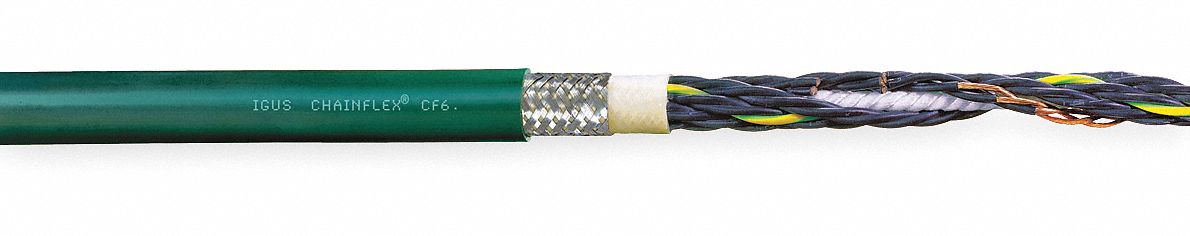

The CHAINFLEX Control Cable: 16 AWG is a continuous flexing control cable from the Chainflex CF6 series. This 25-conductor, single-conductor-configuration cable features copper conductors with a PVC jacket, rated at 600 V, and includes a ground wire. It is oil and grease resistant, cRUus listed, and offers minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Conductors	25
Cable Series	CF6
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF6-15-25
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
