Chainflex 3G-OTH-48516 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-48516 CHAINFLEX Control Cable: 18 AWG Conductor Size, 18 Conductors, PVC, Order by the Foot, Gray (MPN CF140US-07-18). Key specifications — Conductor Size: 18 AWG; Minimum Bend Radius Factor - Fixed: 7.5 x OD; Minimum Bend Radius Factor - Flexible: 8 x OD; Shielding: Shielded; Brand: CHAINFLEX.
Brand: Chainflex

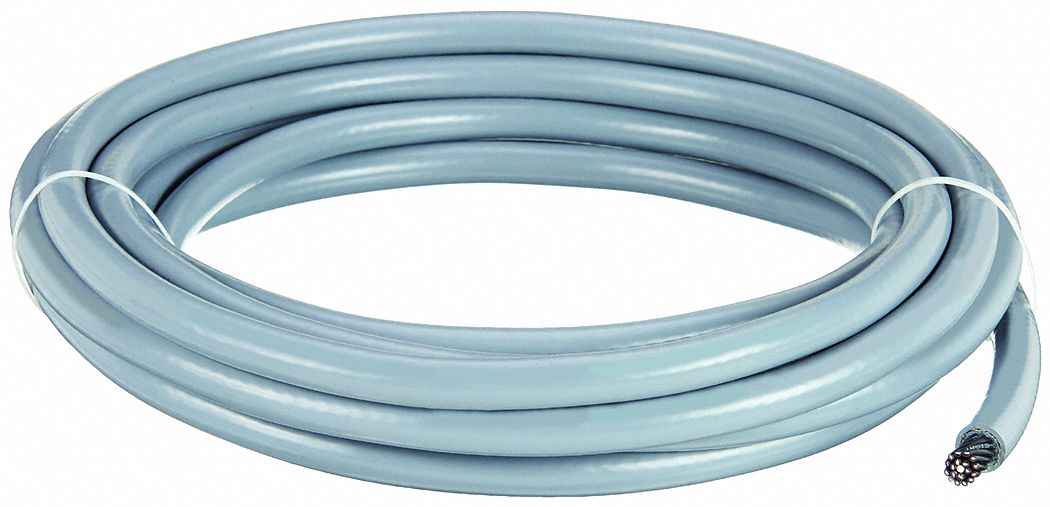

The CHAINFLEX Control Cable (SKU 2TZE9) is a shielded continuous flexing exposed run tray cable with 18 AWG conductor size and 18 conductors. It features a PVC jacket, gray color, and is sold by the foot. The cable has a minimum bend radius factor of 7.5 x OD for fixed installations and 8 x OD for flexible applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	PVC, Order by the Foot, Gray
Brand	CHAINFLEX
Shielding	Shielded
Conductors	18
Conductor Size	18 AWG
Manufacturer Part Number	CF140US-07-18
Minimum Bend Radius Factor - Fixed	7.5 x OD
Minimum Bend Radius Factor - Flexible	8 x OD
