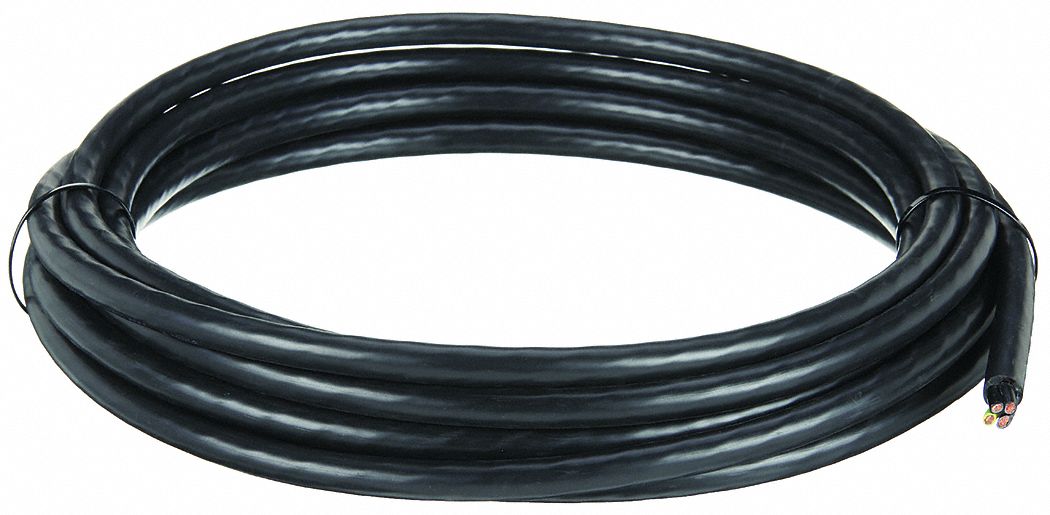

Chainflex 3G-OTH-45229 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-45229 CHAINFLEX Motor Cable: 14 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF30-25-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Heat Resistant; Standards: CE.
Brand: Chainflex

The CHAINFLEX Motor Cable: 14 AWG (SKU 2TZG1) is a continuous flexing power cable for VFDs from the Chainflex CF30 series. This 4-conductor, single-conductor-configuration cable features a copper conductor with a black-with-white-numbers color code, includes a ground, and is heat resistant. It meets CE standards, has a PVC jacket, and is rated for 1,000 V with minimum bend radius factors of 4 x OD (fixed), 6 x OD (flexible), and 7.5 x OD (e-chain).

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Conductors	4
Cable Series	CF30
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Heat Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF30-25-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
