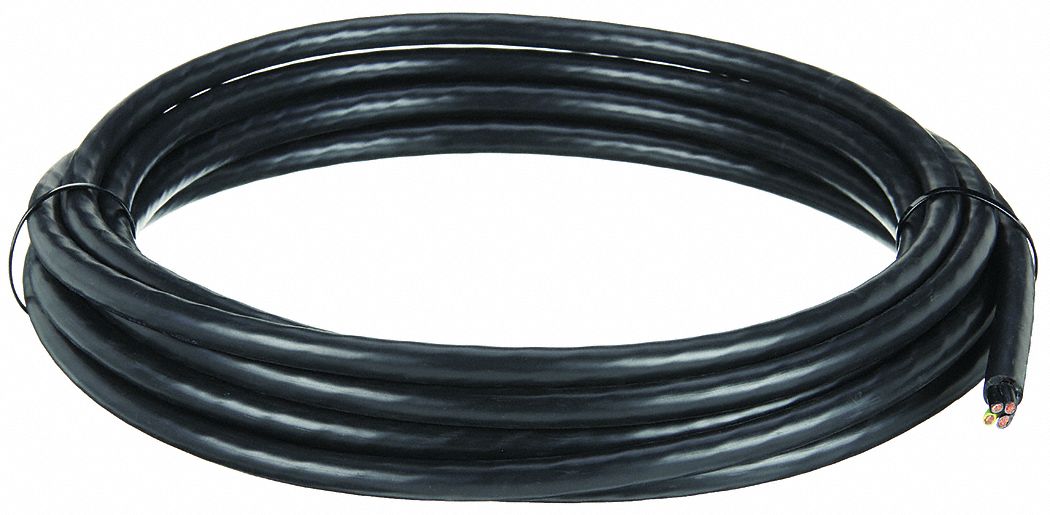

Chainflex 3G-OTH-45361 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-45361 CHAINFLEX Motor Cable: 12 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF30-40-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Heat Resistant; Standards: cRUus.
Brand: Chainflex

The CHAINFLEX Motor Cable: 12 AWG (SKU 2TZG2, MPN CF30-40-04) is a continuous flexing power cable for VFDs from the Chainflex CF30 series. It features 4 copper conductors with a single conductor configuration, a PVC jacket, and a 1,000 V rating, including a ground conductor. The cable is heat resistant, cRUus certified, and has minimum bend radius factors of 4 x OD (fixed), 6 x OD (flexible), and 7.5 x OD (e-chain).

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Conductors	4
Cable Series	CF30
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Heat Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF30-40-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
