Chainflex 3G-OTH-45570 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-45570 CHAINFLEX Motor Cable: 8 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF30-100-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CE.
Brand: Chainflex

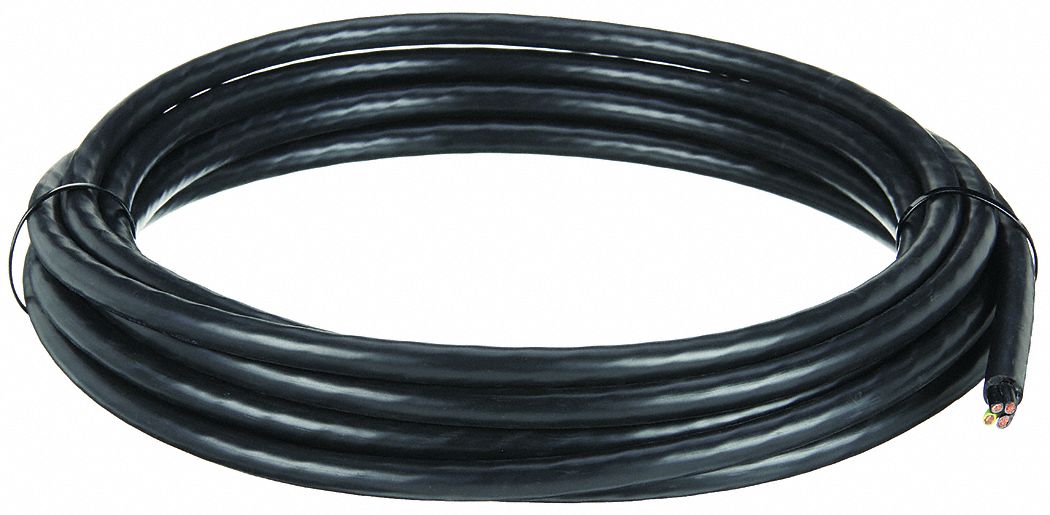

The CHAINFLEX Motor Cable: 8 AWG (SKU 2TZG4) is a continuous flexing power cable for VFDs from the Chainflex CF30 series. This 4-conductor, single-configuration copper cable includes a ground, features a PVC jacket rated to 1,000 V, and is CE certified. It offers oil and grease resistance with minimum bend radius factors of 4 x OD for fixed, 6 x OD for flexible, and 7.5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Conductors	4
Cable Series	CF30
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF30-100-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
