Chainflex 3G-OTH-45746 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-45746 CHAINFLEX Motor Cable: 6 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF31-160-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: cRUus.
Brand: Chainflex

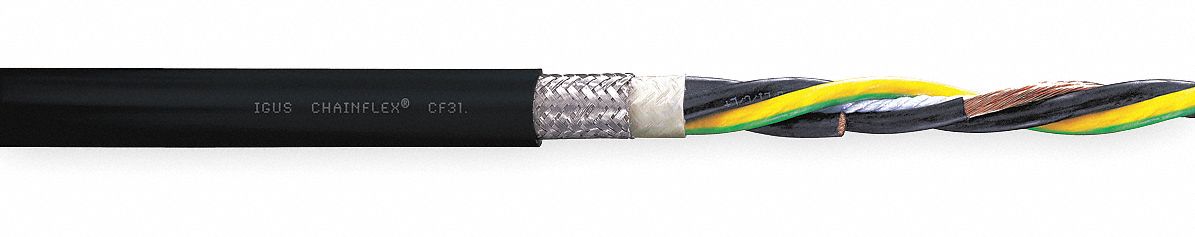

The CHAINFLEX Motor Cable: 6 AWG is a continuous flexing power cable for VFDs from the Chainflex CF31 series. It features 4 copper conductors with a single conductor configuration, includes a ground, and is rated at 1,000 V with a PVC jacket. The cable is oil and grease resistant, cRUus certified, and has minimum bend radius factors of 4 x OD for fixed, 6 x OD for flexible, and 7.5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Conductors	4
Cable Series	CF31
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF31-160-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
