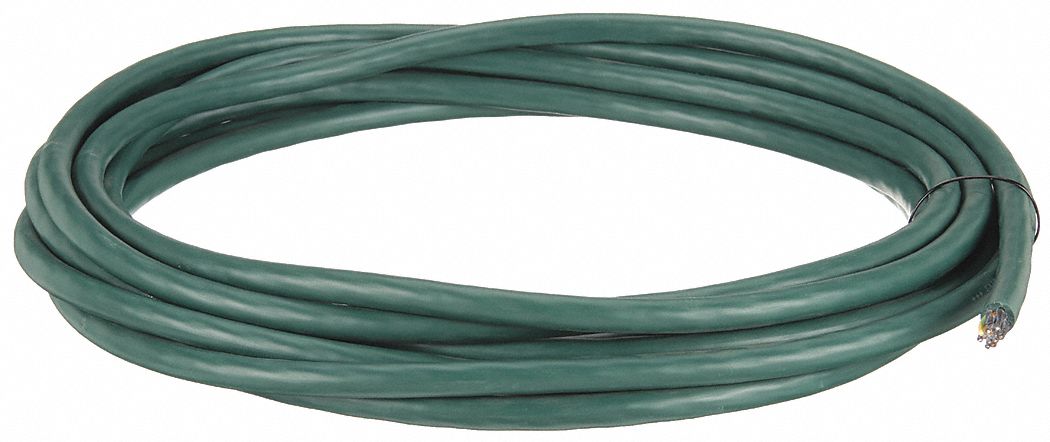

Chainflex 3G-OTH-46523 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-46523 CHAINFLEX Control Cable: 20 AWG, 12 Conductors, 25 ft, PVC Jacket, 600 V (MPN CF5-05-12-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Oil and Grease Resistant; Standards: cRUus.
Brand: Chainflex

The CHAINFLEX Control Cable (SKU 2TZJ8) is a continuous flexing control cable from the Chainflex CF5 series, featuring 20 AWG, 12 conductors, a PVC jacket, and a 600 V rating. It includes a ground conductor, copper conductors with black and white number color coding, and is oil and grease resistant. The cable meets cRUus standards and has minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Cable Series	CF5
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF5-05-12-25
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
