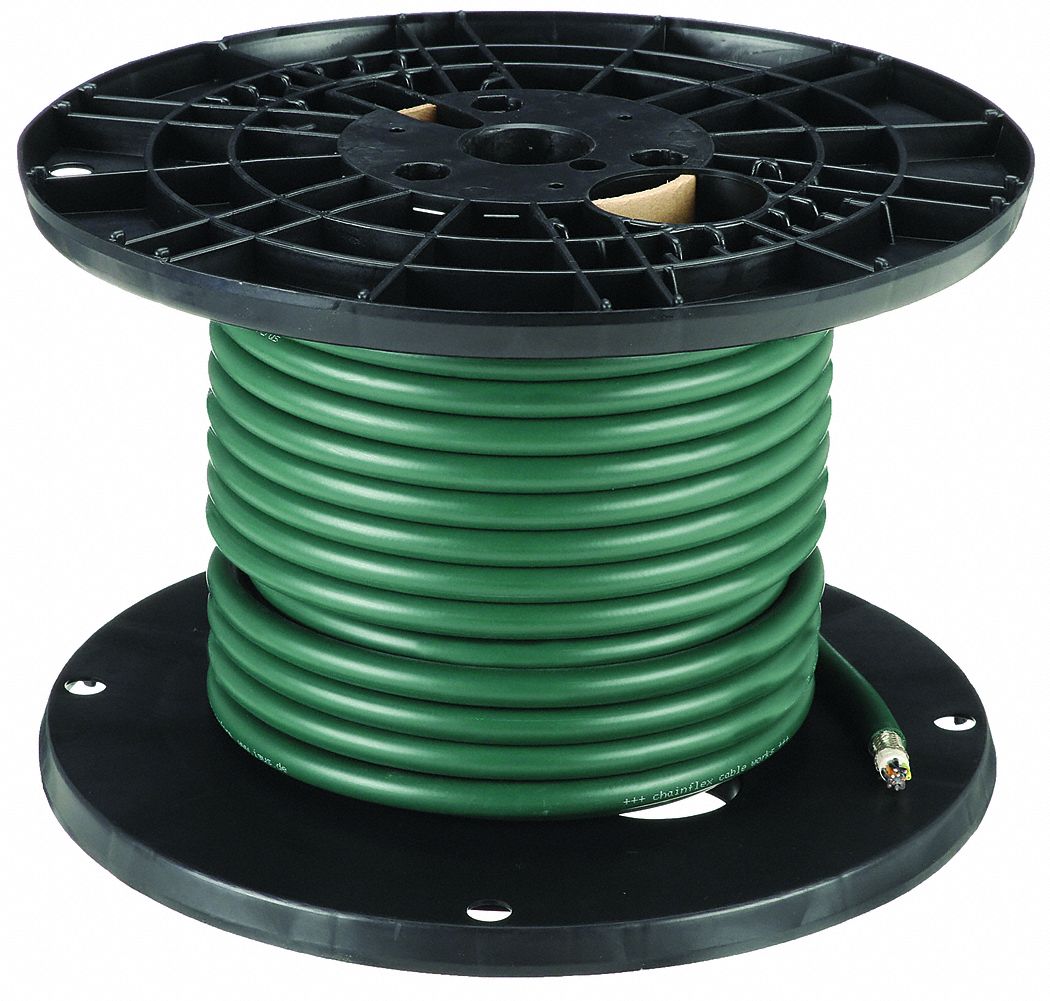

Chainflex 3G-OTH-47985 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-47985 CHAINFLEX Control Cable: 18 AWG, 12 Conductors, 25 ft, PVC Jacket, 600 V (MPN CF6-07-12-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Heat Resistant; Standards: cRUus.
Brand: Chainflex

The CHAINFLEX Control Cable (SKU 2TZP2) is a continuous flexing control cable from the Chainflex CF6 series, featuring 18 AWG, 12 conductors, a PVC jacket, and a 600 V rating. It includes a ground conductor, uses single copper conductors with black/white numbered insulation, and is heat resistant. The cable meets cRUus standards and has minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Cable Series	CF6
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Heat Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF6-07-12-25
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
