Chainflex 3G-OTH-48164 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-48164 CHAINFLEX Control Cable: 18 AWG, 18 Conductors, 25 ft, PVC Jacket, 600 V (MPN CF6-07-18-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Heat Resistant; Standards: CE.
Brand: Chainflex

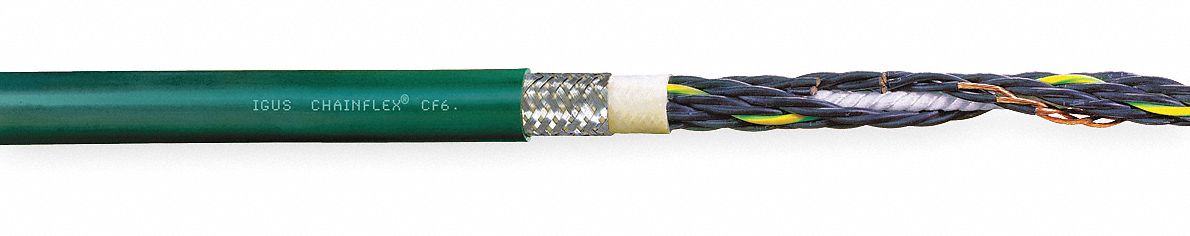

The CHAINFLEX CF6-07-18-25 is a continuous flexing control cable from the Chainflex series, featuring 18 AWG, 18 conductors, a PVC jacket, and a 600 V rating. This CE-certified cable includes a ground conductor, uses copper conductors with a single configuration, and is heat resistant. It offers minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Series	Chainflex
Standards	CE
Cable Series	CF6
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Heat Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF6-07-18-25
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
