Chainflex 3G-OTH-46151 — Spesifikasi Teknis

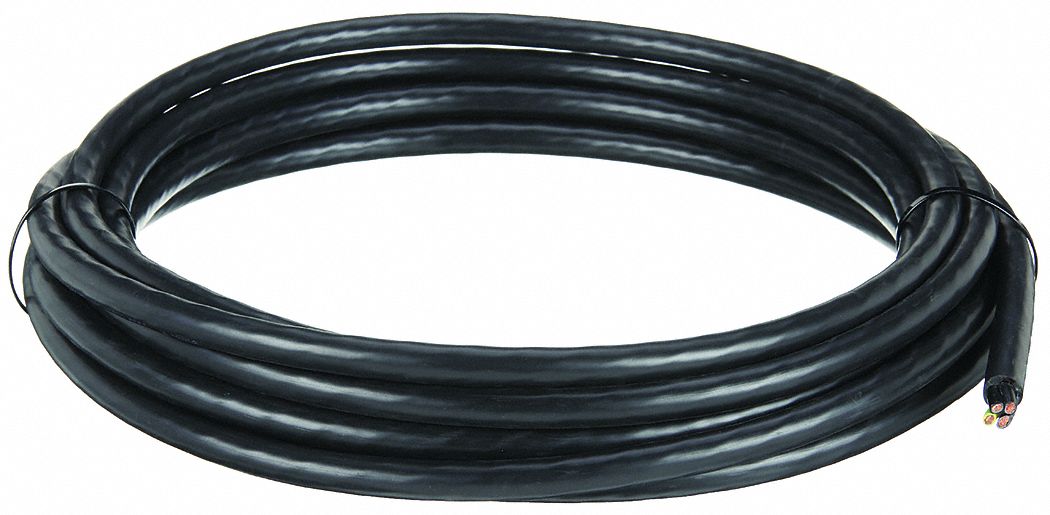

The CHAINFLEX CF30 Motor Cable (SKU 2TZV8) is a continuous flexing power cable for VFDs, featuring 14 AWG, 4 conductors, a PVC jacket, and a 1,000 V rating. It includes a ground conductor, uses single copper conductors with black/white numbering, and is oil and grease resistant. The cable meets cRUus standards and has minimum bend radius factors of 4 x OD (fixed), 6 x OD (flexible), and 7.5 x OD (e-chain).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | CHAINFLEX |
| Series | Chainflex |
| Standards | cRUus |
| Cable Series | CF30 |
| Product Type | Motor Cable |
| Includes Ground | Yes |
| Conductor Material | Copper |
| Conductor Color Code | Black with White Numbers |
| Resistance Properties | Oil and Grease Resistant |
| Conductor Configuration | Single |
| Manufacturer Part Number | CF30-25-04-25 |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Minimum Bend Radius Factor - E-Chain | 7.5 x OD |
| Minimum Bend Radius Factor - Flexible | 6 x OD |
