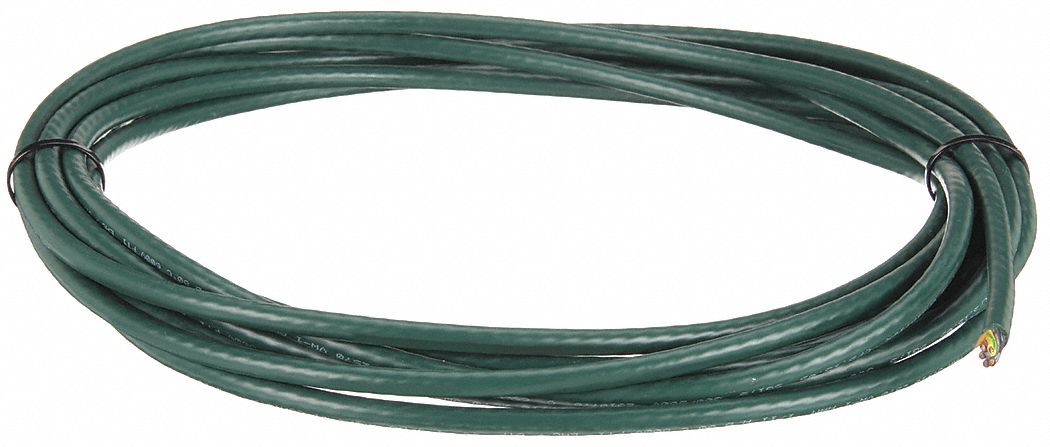

Chainflex 3G-OTH-53498 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-53498 CHAINFLEX Control Cable: 16 AWG, 5 Conductors, 100 ft, PVC Jacket, 600 V (MPN CF5-15-05-100). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Oil and Grease Resistant; Standards: cRUus.
Brand: Chainflex

The CHAINFLEX CF5-15-05-100 is a continuous flexing control cable from the Chainflex series, featuring 16 AWG, 5 conductors, a PVC jacket, and a 600 V rating. This copper-conductor cable includes a ground, is oil and grease resistant, and meets cRUus standards. It offers minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Cable Series	CF5
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF5-15-05-100
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
