Chainflex 3G-OTH-48208 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-48208 CHAINFLEX Control Cable: 18 AWG, 18 Conductors, 100 ft, PVC Jacket, 600 V (MPN CF6-07-18-100). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Oil and Grease Resistant; Standards: cRUus.
Brand: Chainflex

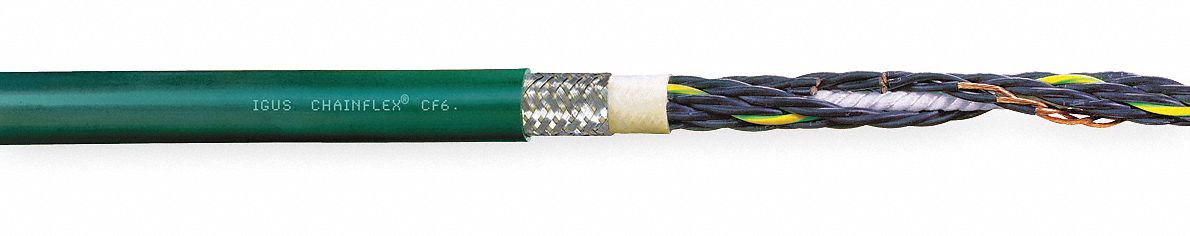

The CHAINFLEX CF6-07-18-100 is a continuous flexing control cable from the Chainflex series, featuring 18 AWG, 18 conductors, a PVC jacket, and a 600 V rating. It includes a ground conductor, uses copper conductors with a single configuration, and is oil and grease resistant. The cable meets cRUus standards and has minimum bend radius factors of 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Cable Series	CF6
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF6-07-18-100
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
