Chainflex 3G-OTH-46272 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-46272 CHAINFLEX Motor Cable: 6 AWG, 4 Conductors, 100 ft, PVC Jacket, 1,000 V (MPN CF31-160-04-100). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Heat Resistant; Standards: cRUus.
Brand: Chainflex

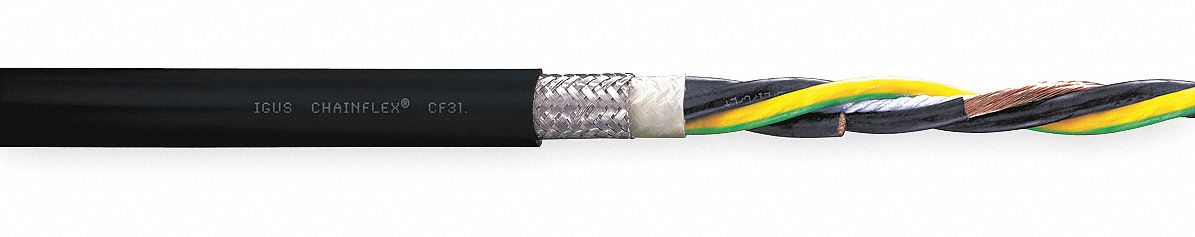

The CHAINFLEX CF31 Motor Cable is a continuous flexing power cable for VFDs, featuring 6 AWG, 4 conductors, a PVC jacket, and a 1,000 V rating. It includes a ground conductor, is made of copper with a single conductor configuration, and is heat resistant. The cable meets cRUus standards and has minimum bend radius factors of 4 x OD for fixed, 6 x OD for flexible, and 7.5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Cable Series	CF31
Product Type	Motor Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Heat Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF31-160-04-100
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
