Chainflex 3G-OTH-54353 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-54353 CHAINFLEX Control Cable: 20 AWG, 5 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF10-05-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Coolant Resistant; Standards: IPA 14644-1.
Brand: Chainflex

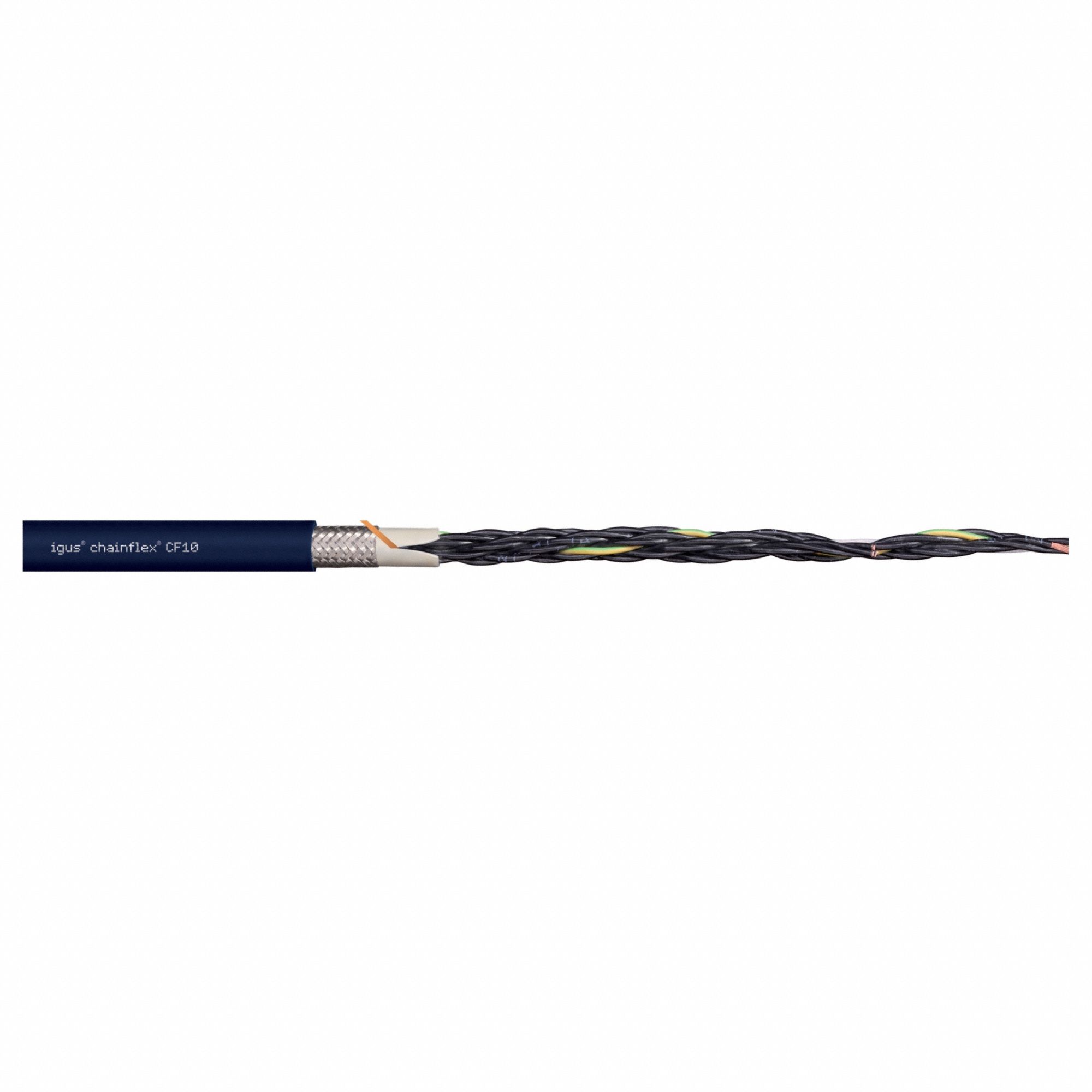

The CHAINFLEX Control Cable: 20 AWG (SKU 801HY5, MPN CF10-05-05) is a continuous flexing control cable from the Chainflex CF10 series. It features 5 conductors of single copper wire, a TPR jacket, 300 V rating, and is coolant resistant. The cable meets IPA 14644-1 standards and has minimum bend radius factors of 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, TPR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	IPA 14644-1
Conductors	5
Cable Series	CF10
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Coolant Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF10-05-05
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
