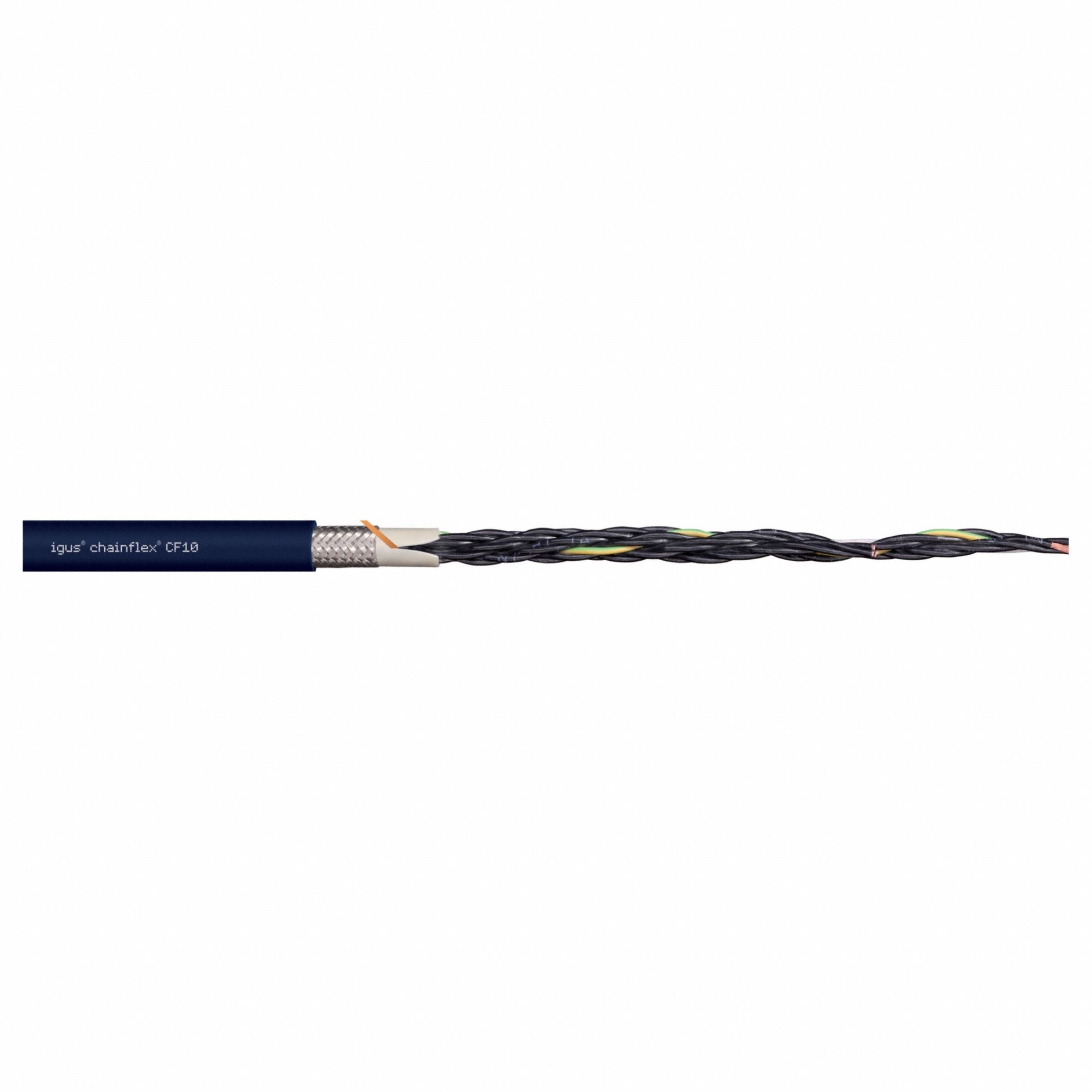

Chainflex 3G-OTH-51713 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-51713 CHAINFLEX Control Cable: 17 AWG, 12 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF10-10-12). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Antimicrobial; Standards: PV 3.10.7 Status 1992.
Brand: Chainflex

The CHAINFLEX Control Cable: 17 AWG is a continuous flexing control cable from the Chainflex CF10 series, featuring 12 conductors of single copper wire with a TPR jacket rated at 300 V. It includes a ground conductor and offers antimicrobial resistance, with minimum bend radius factors of 3 x OD for fixed, 4 x OD for flexible, and 5 x OD for e-chain applications, complying with PV 3.10.7 Status 1992 standards.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, TPR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	PV 3.10.7 Status 1992
Conductors	12
Cable Series	CF10
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Antimicrobial
Conductor Configuration	Single
Manufacturer Part Number	CF10-10-12
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
