Chainflex 3G-OTH-52774 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-52774 CHAINFLEX Control Cable: 17 AWG, 25 Conductors, Order by the Foot, TPR Jacket, 1,000 V (MPN CF10-UL-10-25). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: Bending Resistance; Standards: FT-1.
Brand: Chainflex

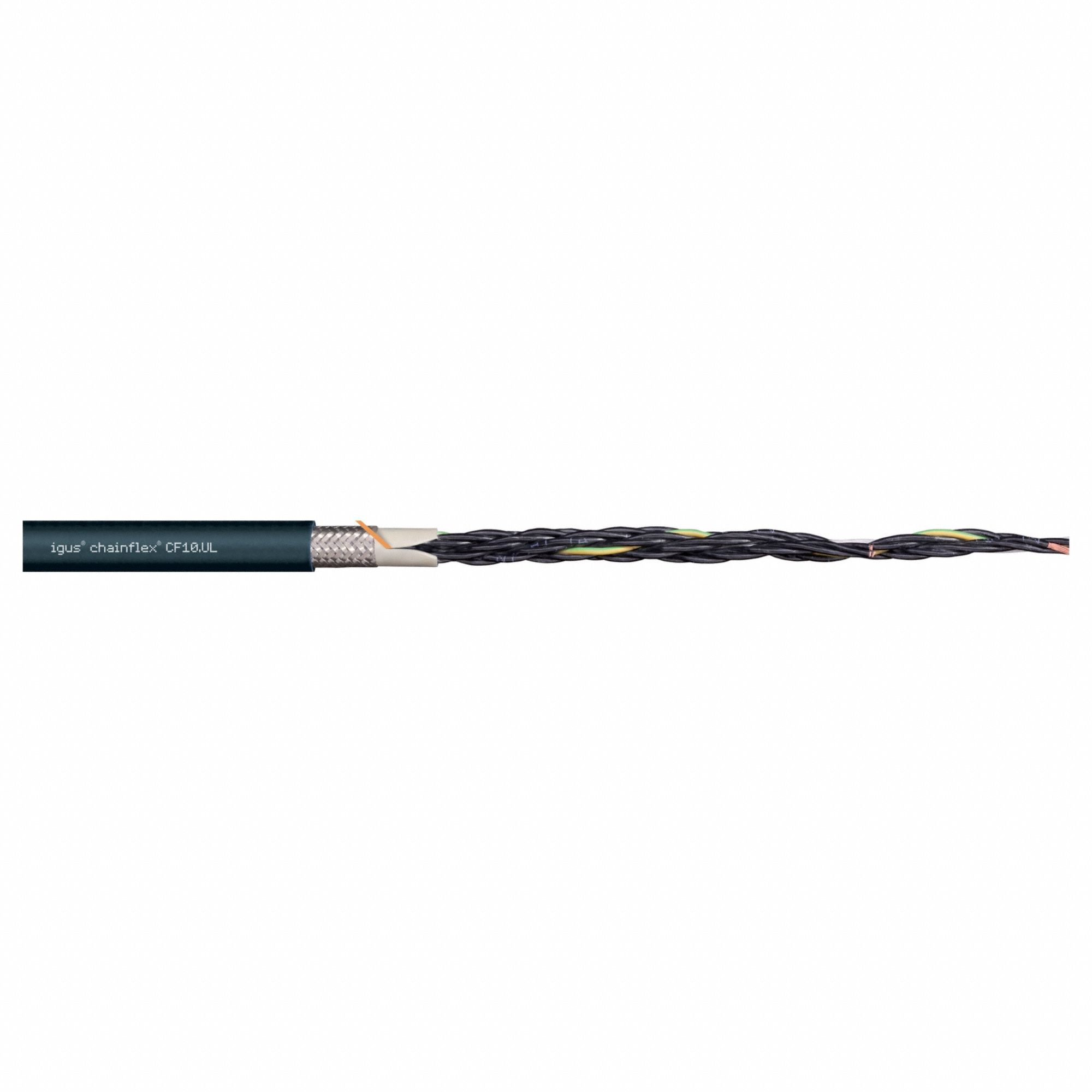

The CHAINFLEX Control Cable: 17 AWG is a continuous flexing control cable from the Chainflex series, model CF10-UL-10-25. It features 25 conductors of single copper wire, a TPR jacket, and a 1,000 V rating, with a minimum bend radius factor of 3 x OD for fixed installation, 4 x OD for flexible use, and 5 x OD for e-chain applications. This cable includes a ground conductor, meets FT-1 standards, and is designed for bending resistance.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, TPR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-1
Conductors	25
Cable Series	CF10-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Bending Resistance
Conductor Configuration	Single
Manufacturer Part Number	CF10-UL-10-25
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
