Chainflex 3G-OTH-51707 — Spesifikasi Teknis

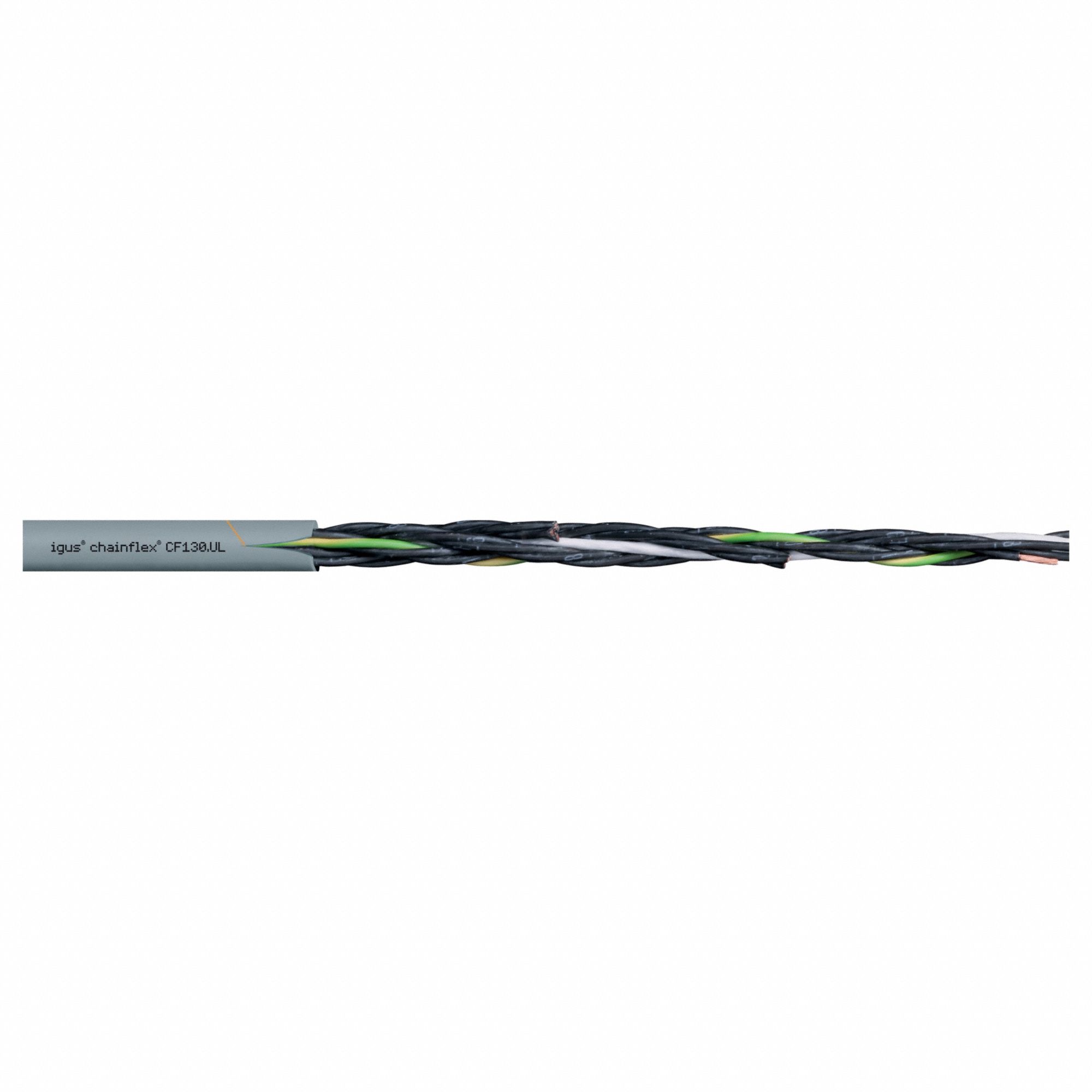

The CHAINFLEX Control Cable: 24 AWG (SKU 801J32, MPN CF130-02-07) is a continuous flexing control cable from the Chainflex CF130-UL series. It features 7 conductors of single copper wire, a PVC jacket, 300 V rating, and includes a ground conductor. The cable is flame retardant (VW-1 standard) with minimum bend radius factors of 4 x OD (fixed), 6 x OD (flexible), and 7.5 x OD (e-chain).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Order by the Foot, PVC Jacket, 300 V |
| Brand | CHAINFLEX |
| Series | Chainflex |
| Standards | VW-1 |
| Conductors | 7 |
| Cable Series | CF130-UL |
| Product Type | Control Cable |
| Includes Ground | Yes |
| Conductor Material | Copper |
| Resistance Properties | Flame Retardant |
| Conductor Configuration | Single |
| Manufacturer Part Number | CF130-02-07 |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Minimum Bend Radius Factor - E-Chain | 7.5 x OD |
| Minimum Bend Radius Factor - Flexible | 6 x OD |
