Chainflex 3G-OTH-52909 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-52909 CHAINFLEX Control Cable: 22 AWG, 2 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF130-03-02). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Flame Retardant; Standards: IPA 14644-1.
Brand: Chainflex

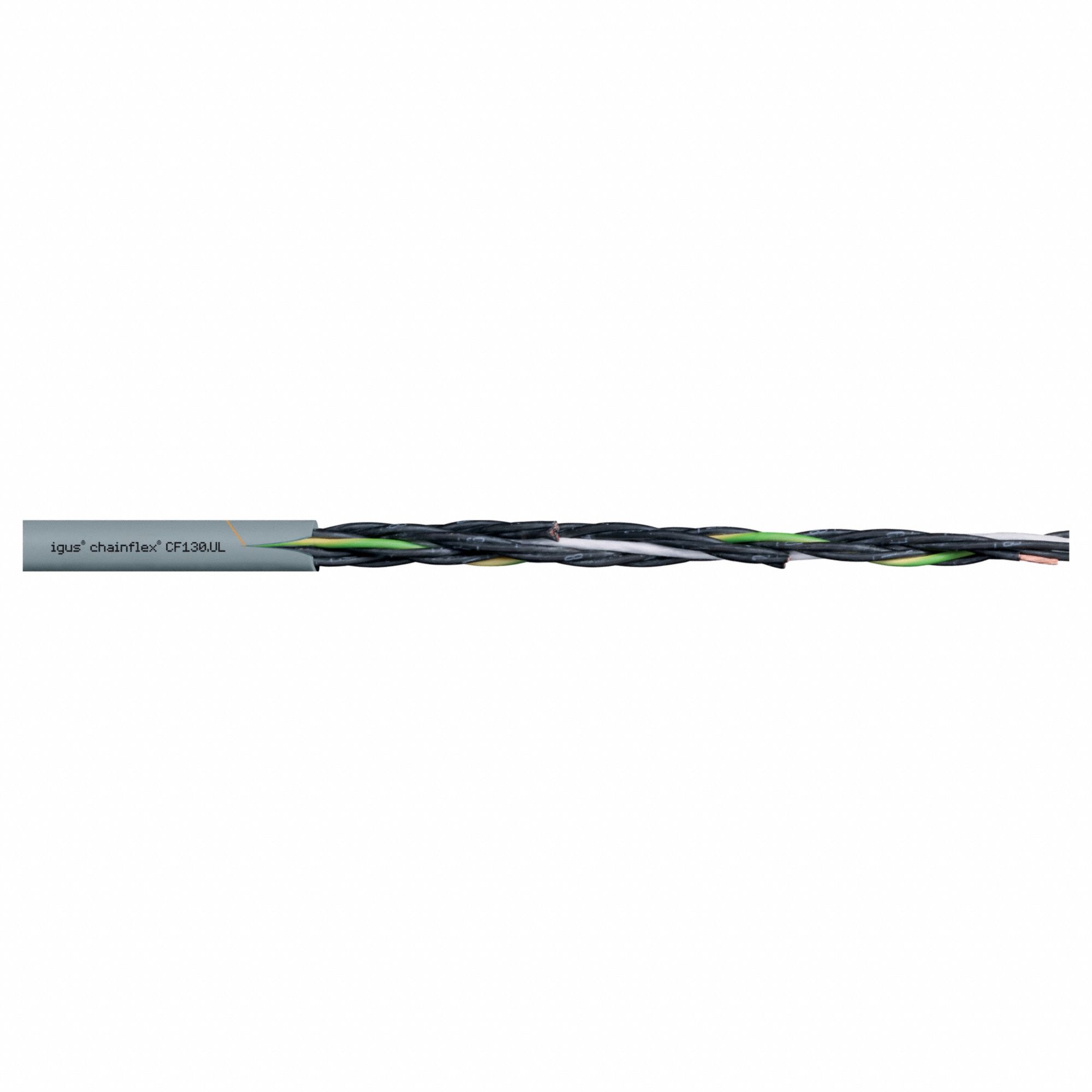

The CHAINFLEX Control Cable: 22 AWG is a continuous flexing control cable from the Chainflex series, model CF130-03-02. It features 2 copper conductors with a PVC jacket, rated at 300 V, and includes a ground conductor. The cable is flame retardant and meets IPA 14644-1 standards, with minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	IPA 14644-1
Conductors	2
Cable Series	CF130-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF130-03-02
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
