Chainflex 3G-OTH-51662 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-51662 CHAINFLEX Control Cable: 22 AWG, 5 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF130-03-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Flame Retardant; Standards: EAC TC RU C-DE. ME77.B.01254.
Brand: Chainflex

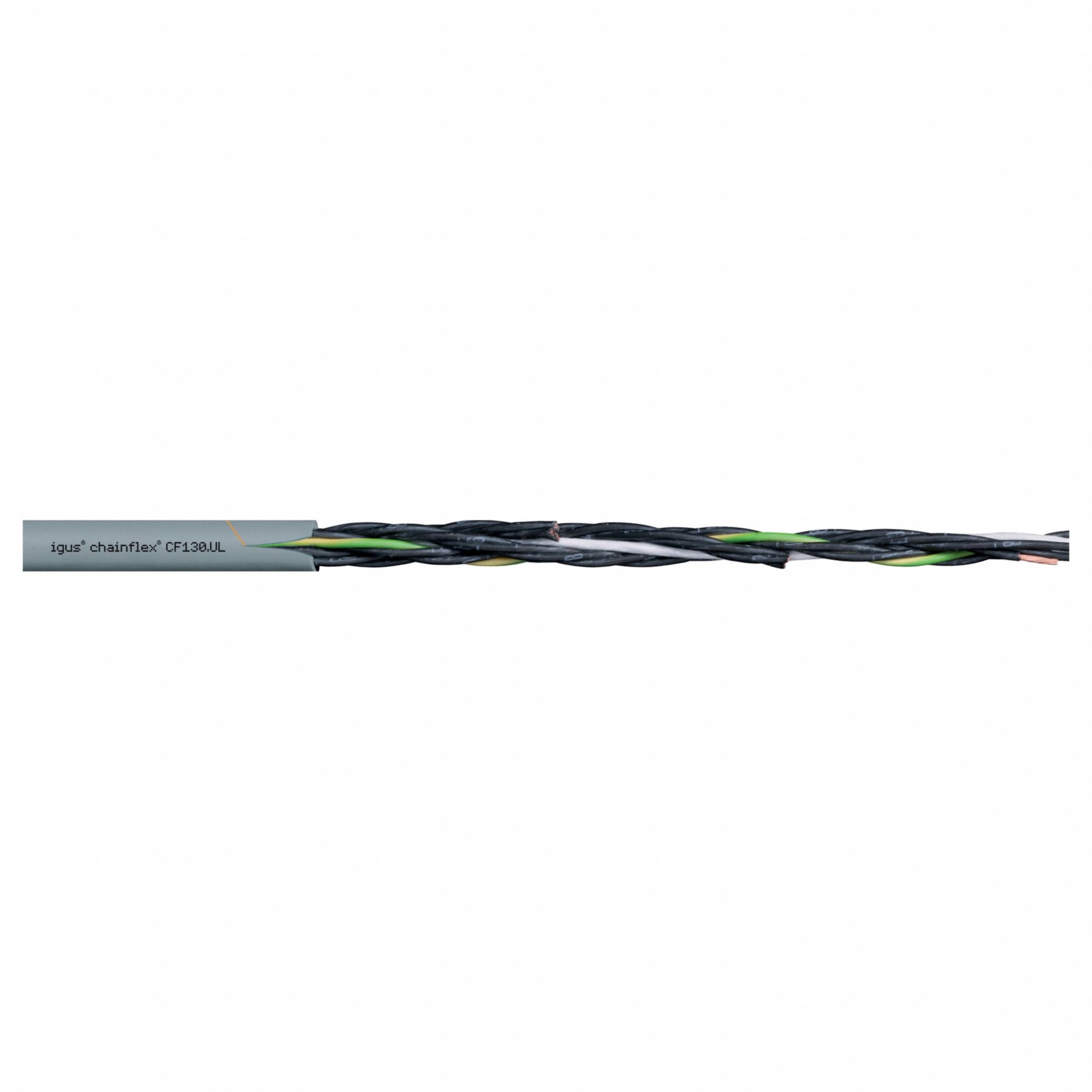

The CHAINFLEX Control Cable: 22 AWG (SKU 801J39) is a continuous flexing control cable from the Chainflex CF130-UL series, featuring 5 copper conductors with a single conductor configuration and an integrated ground. It is rated at 300 V, has a PVC jacket, and is flame retardant, with minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications. This cable complies with EAC standard TC RU C-DE. ME77.B.01254 and is sold by the foot.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	EAC TC RU C-DE. ME77.B.01254
Conductors	5
Cable Series	CF130-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF130-03-05
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
