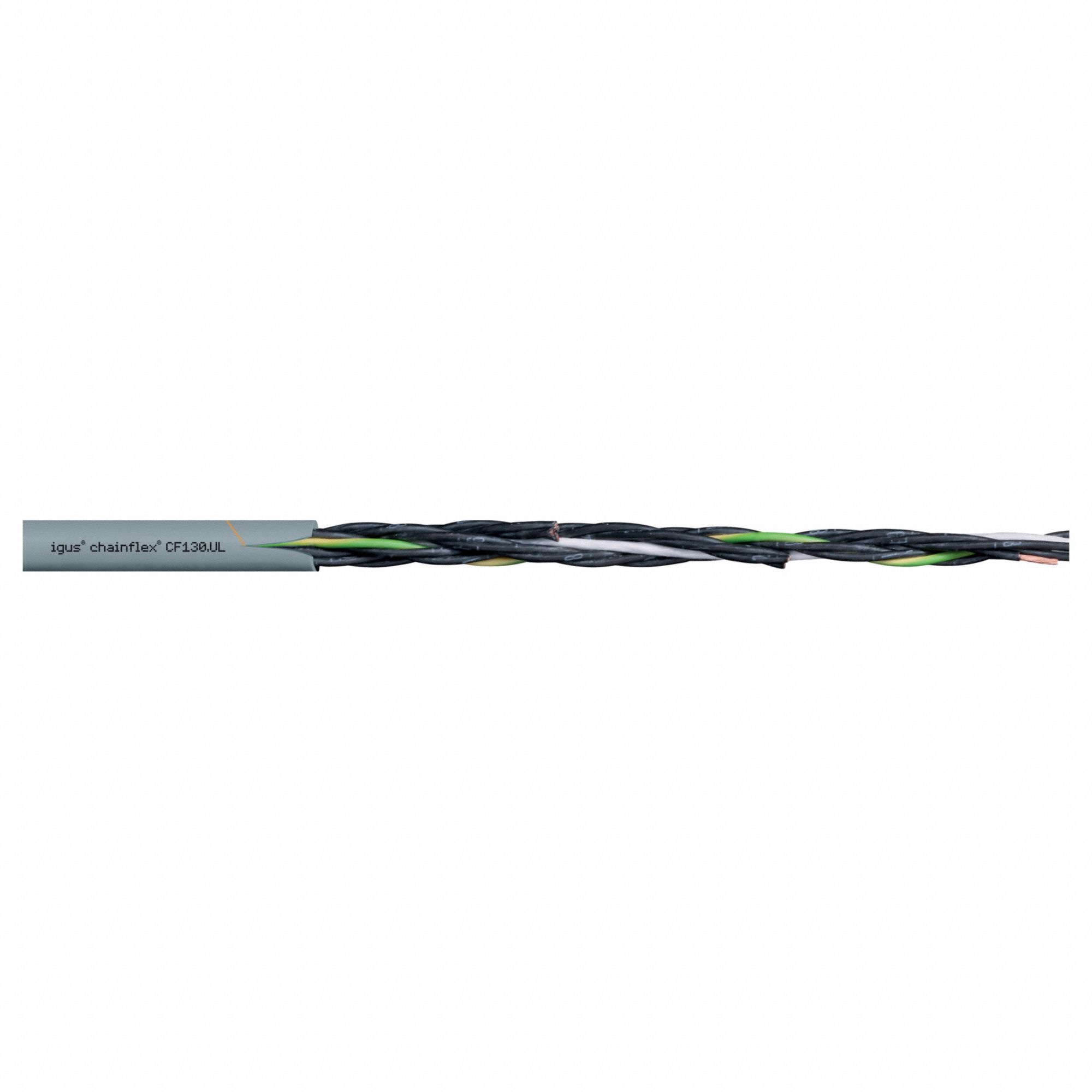

Chainflex 3G-OTH-52973 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-52973 CHAINFLEX Control Cable: 17 AWG, 12 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF130-10-12). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Flame Retardant; Standards: 2011/65/EU (RoHS Compliant-II).
Brand: Chainflex

The CHAINFLEX Control Cable: 17 AWG is a continuous flexing control cable from the Chainflex CF130-UL series, featuring 12 conductors with a single copper conductor configuration and a PVC jacket rated at 300 V. It includes a ground conductor and is flame retardant, with minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications. This cable complies with 2011/65/EU (RoHS Compliant-II) standards.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	2011/65/EU (RoHS Compliant-II)
Conductors	12
Cable Series	CF130-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF130-10-12
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
