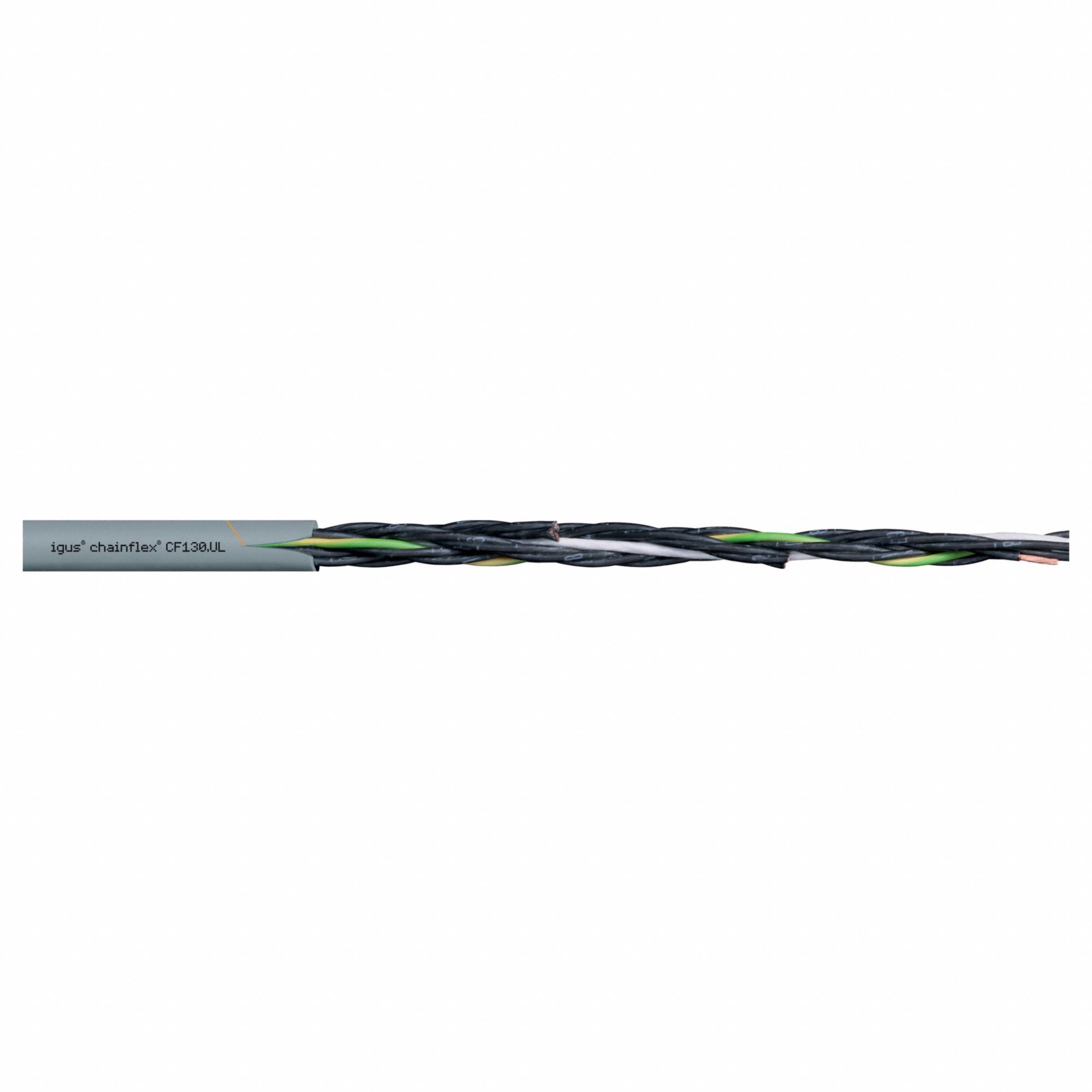

Chainflex 3G-OTH-51340 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-51340 CHAINFLEX Control Cable: 17 AWG, 18 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF130-10-18). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Flame Retardant; Standards: CF130.15.07.UL ISO Class 1 (Outer Jacket Material).
Brand: Chainflex

The CHAINFLEX Control Cable: 17 AWG is a continuous flexing control cable from the Chainflex series, model CF130-10-18, featuring 18 conductors of single copper wire with a PVC jacket rated at 300 V. It includes a ground conductor and is flame retardant, with minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications, meeting CF130.15.07.UL ISO Class 1 outer jacket material standards.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CF130.15.07.UL ISO Class 1 (Outer Jacket Material)
Conductors	18
Cable Series	CF130-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF130-10-18
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
