Chainflex 3G-OTH-53944 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-53944 CHAINFLEX Control Cable: 16 AWG, 5 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF130-15-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Flame Retardant; Standards: VW-1.
Brand: Chainflex

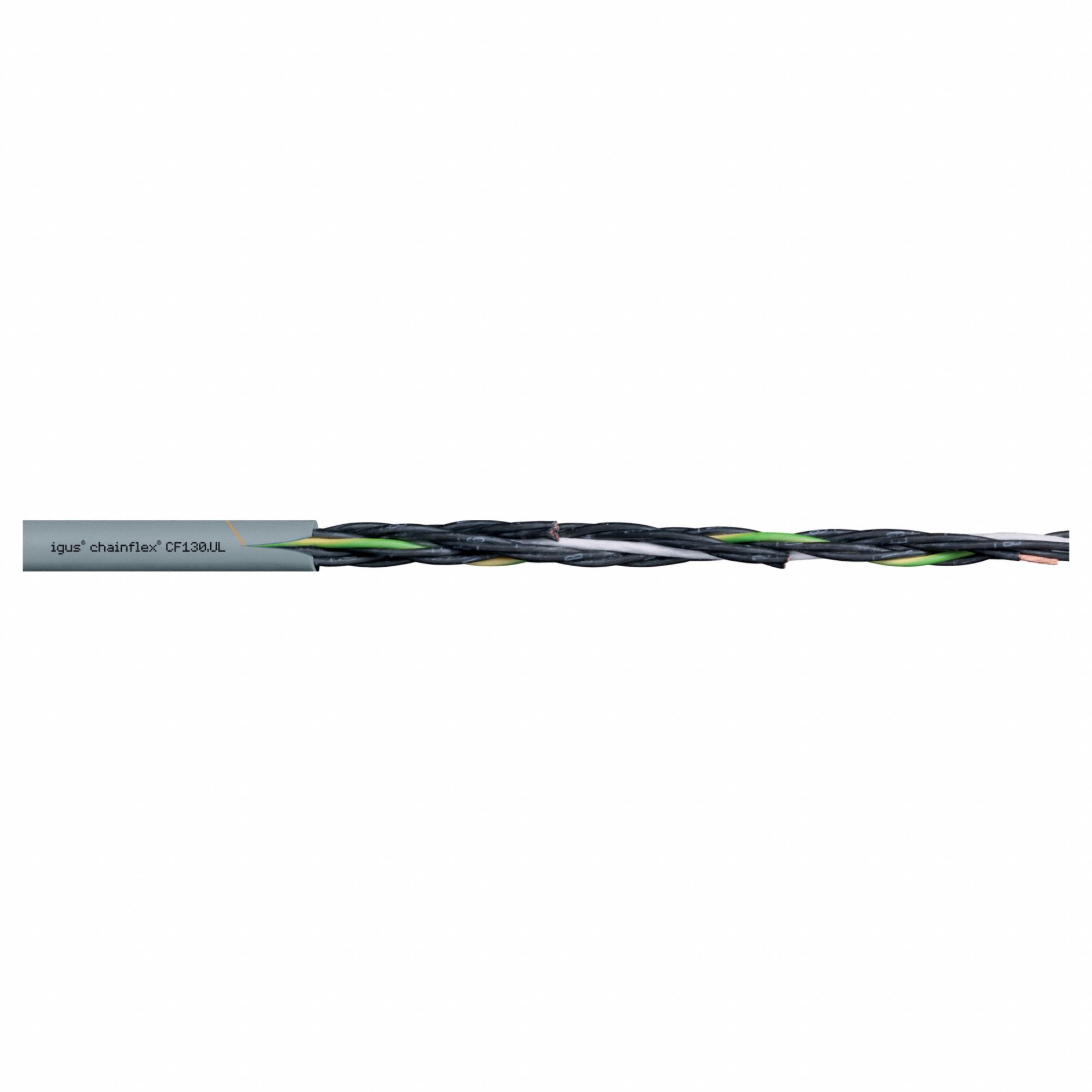

The CHAINFLEX Control Cable: 16 AWG is a continuous flexing control cable from the Chainflex series, model CF130-UL (MPN CF130-15-05), featuring 5 conductors of 16 AWG copper wire with a single conductor configuration and a PVC jacket rated at 300 V. It includes a ground conductor, is flame retardant (VW-1 standard), and has minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	VW-1
Conductors	5
Cable Series	CF130-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF130-15-05
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
