Chainflex 3G-OTH-52376 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-52376 CHAINFLEX Control Cable: 6 AWG, 5 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF130-160-05). Key specifications — Conductor Material: Copper; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Flame Retardant; Standards: NFPA 79-2012 Chapter 12.9; Product Type: Control Cable.
Brand: Chainflex

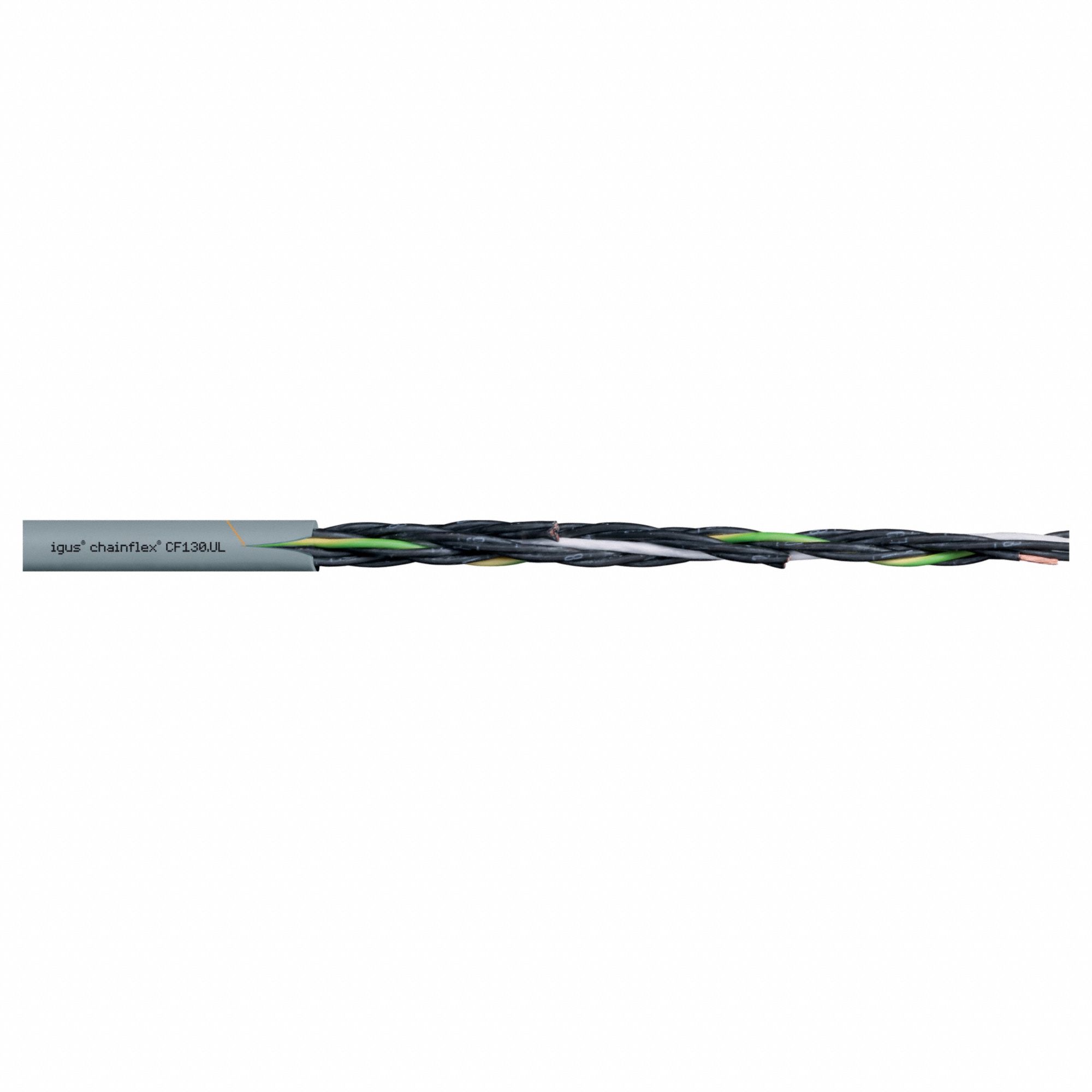

The CHAINFLEX Control Cable: 6 AWG is a continuous flexing control cable from the CF130-UL series, featuring 5 copper conductors with a PVC jacket rated at 300 V. It includes a ground conductor and meets NFPA 79-2012 Chapter 12.9 standards, with flame retardant properties. The cable offers minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Standards	NFPA 79-2012 Chapter 12.9
Conductors	5
Cable Series	CF130-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Manufacturer Part Number	CF130-160-05
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
