Chainflex 3G-OTH-52396 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-52396 CHAINFLEX Control Cable: 24 AWG, 12 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF140-02-12). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: FT-2.
Brand: Chainflex

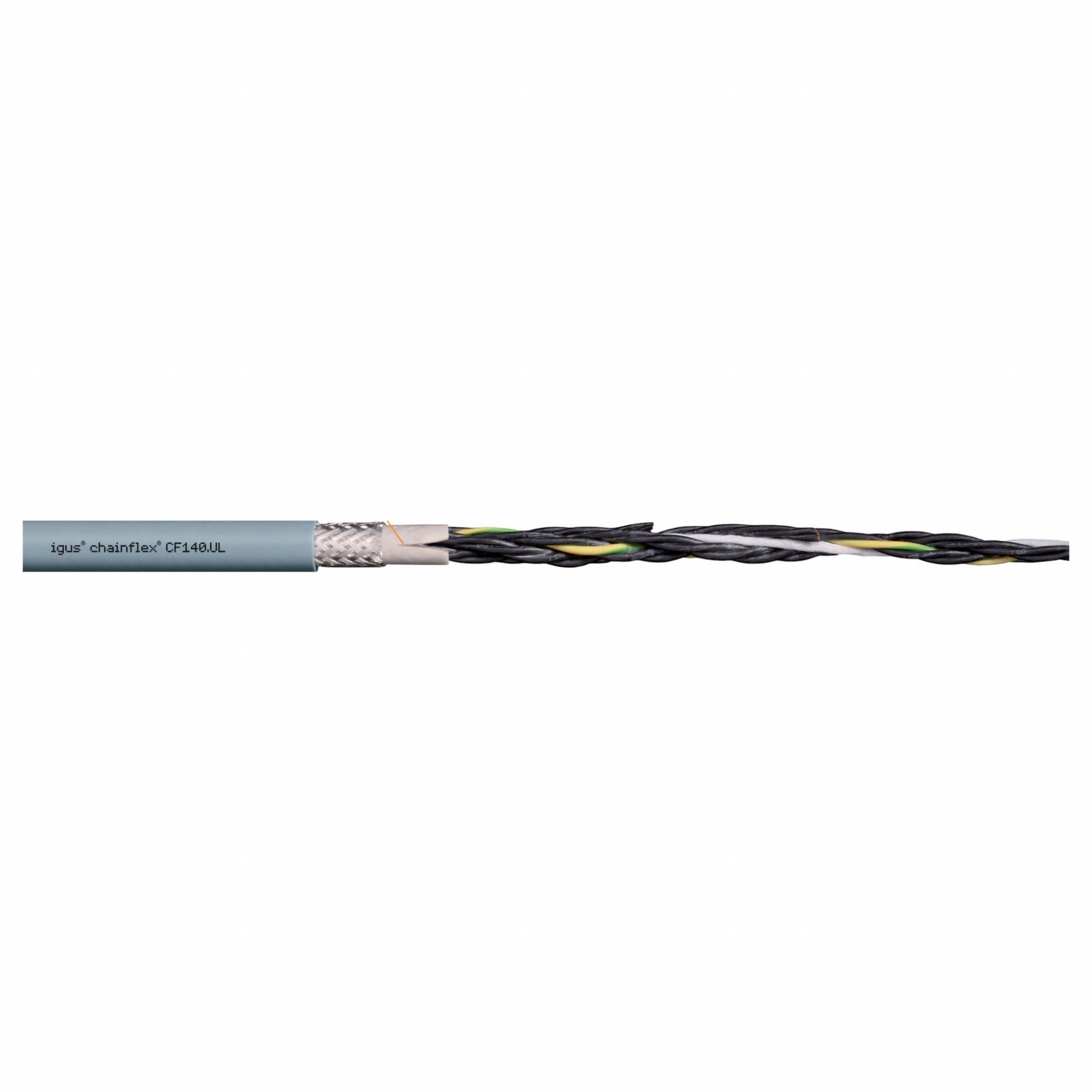

The CHAINFLEX Control Cable: 24 AWG is a continuous flexing control cable from the Chainflex CF140-UL series, featuring 12 conductors of single copper wire with a PVC jacket rated at 300 V. It is oil and grease resistant, meets FT-2 standards, and offers minimum bend radius factors of 4 x OD for fixed, 6 x OD for flexible, and 7.5 x OD for e-chain applications. This cable does not include a ground conductor and is sold by the foot.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	FT-2
Conductors	12
Cable Series	CF140-UL
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF140-02-12
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
