Chainflex 3G-OTH-52982 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-52982 CHAINFLEX Control Cable: 20 AWG, 36 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF140-05-36). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: IEC 60332-1-2.
Brand: Chainflex

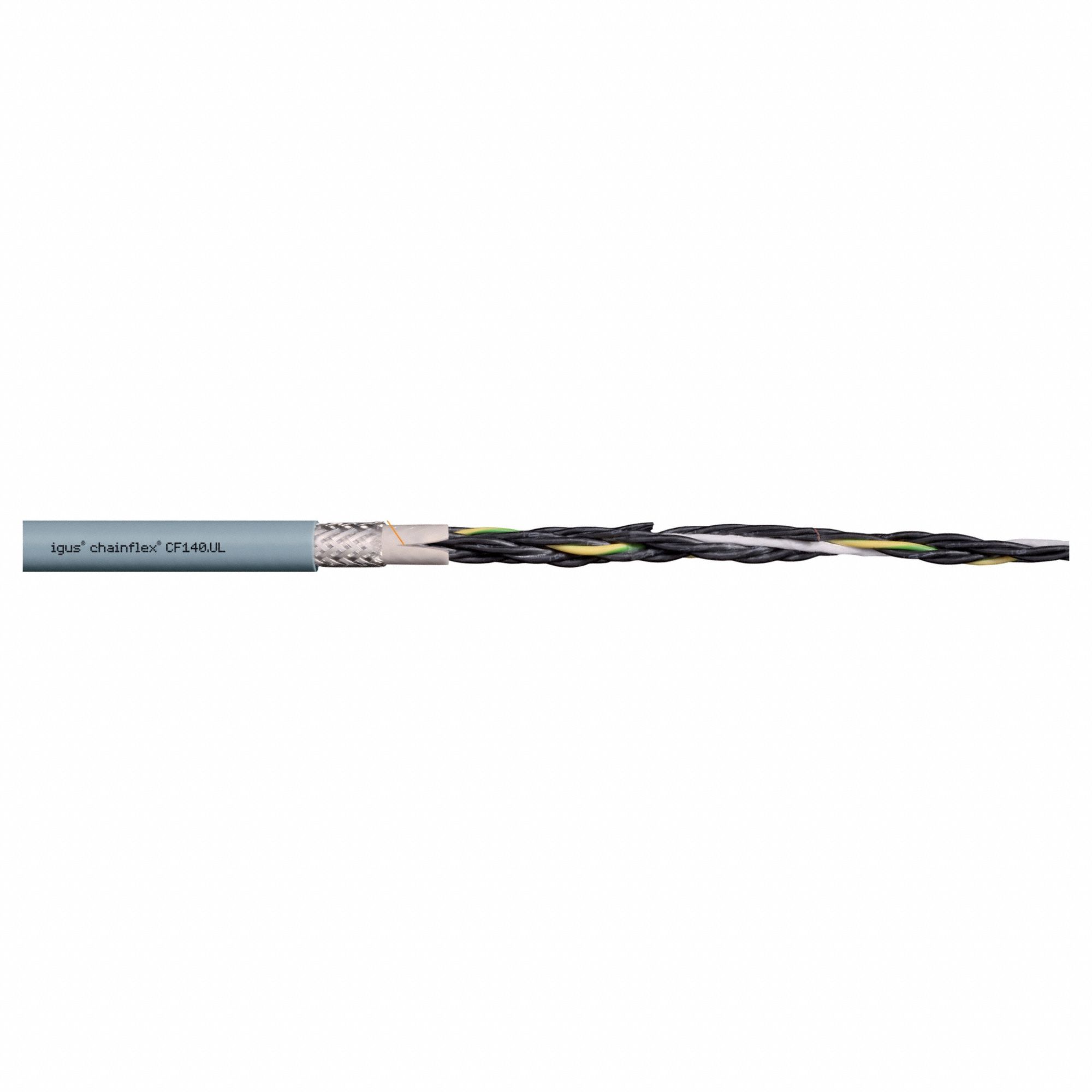

The CHAINFLEX Control Cable: 20 AWG (SKU 801J93) is a continuous flexing control cable from the Chainflex series, model CF140-UL. It features 36 conductors of single copper wire with a PVC jacket, rated at 300 V, and includes a ground conductor. The cable is oil and grease resistant, complies with IEC 60332-1-2, and has minimum bend radius factors of 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	IEC 60332-1-2
Conductors	36
Cable Series	CF140-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF140-05-36
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
