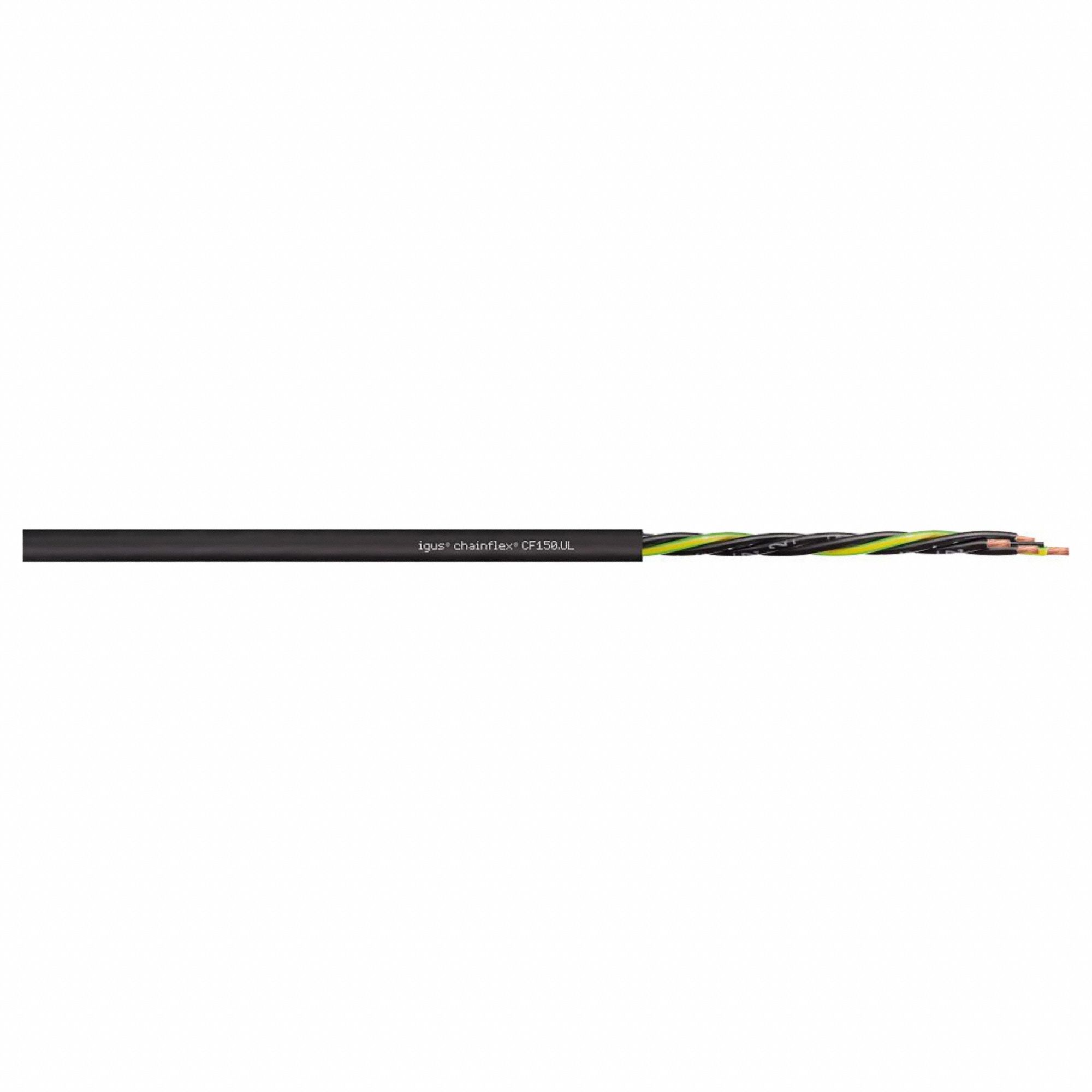

Chainflex 3G-OTH-49167 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-49167 CHAINFLEX Control Cable: 16 AWG Conductor Size, 12 Conductors, PVC, Order by the Foot, Black (MPN CF150-UL-15-12). Key specifications — Conductor Size: 16 AWG; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Shielding: Unshielded; Brand: CHAINFLEX.
Brand: Chainflex

The CHAINFLEX Control Cable (MPN CF150-UL-15-12) is an unshielded continuous flexing exposed run tray cable with 12 conductors of 16 AWG size. It features a minimum bend radius factor of 4 x OD for fixed installations and 6 x OD for flexible applications, with a PVC jacket. This cable is sold by the foot and is designed for industrial control applications requiring continuous flexing.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	PVC, Order by the Foot, Black
Brand	CHAINFLEX
Shielding	Unshielded
Conductors	12
Conductor Size	16 AWG
Manufacturer Part Number	CF150-UL-15-12
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
