Chainflex 3G-OTH-45818 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-45818 CHAINFLEX Control Cable: 14 AWG Conductor Size, 4 Conductors, PVC, Order by the Foot, Black (MPN CF160-UL-25-04). Key specifications — Conductor Size: 14 AWG; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Shielding: Shielded; Brand: CHAINFLEX.
Brand: Chainflex

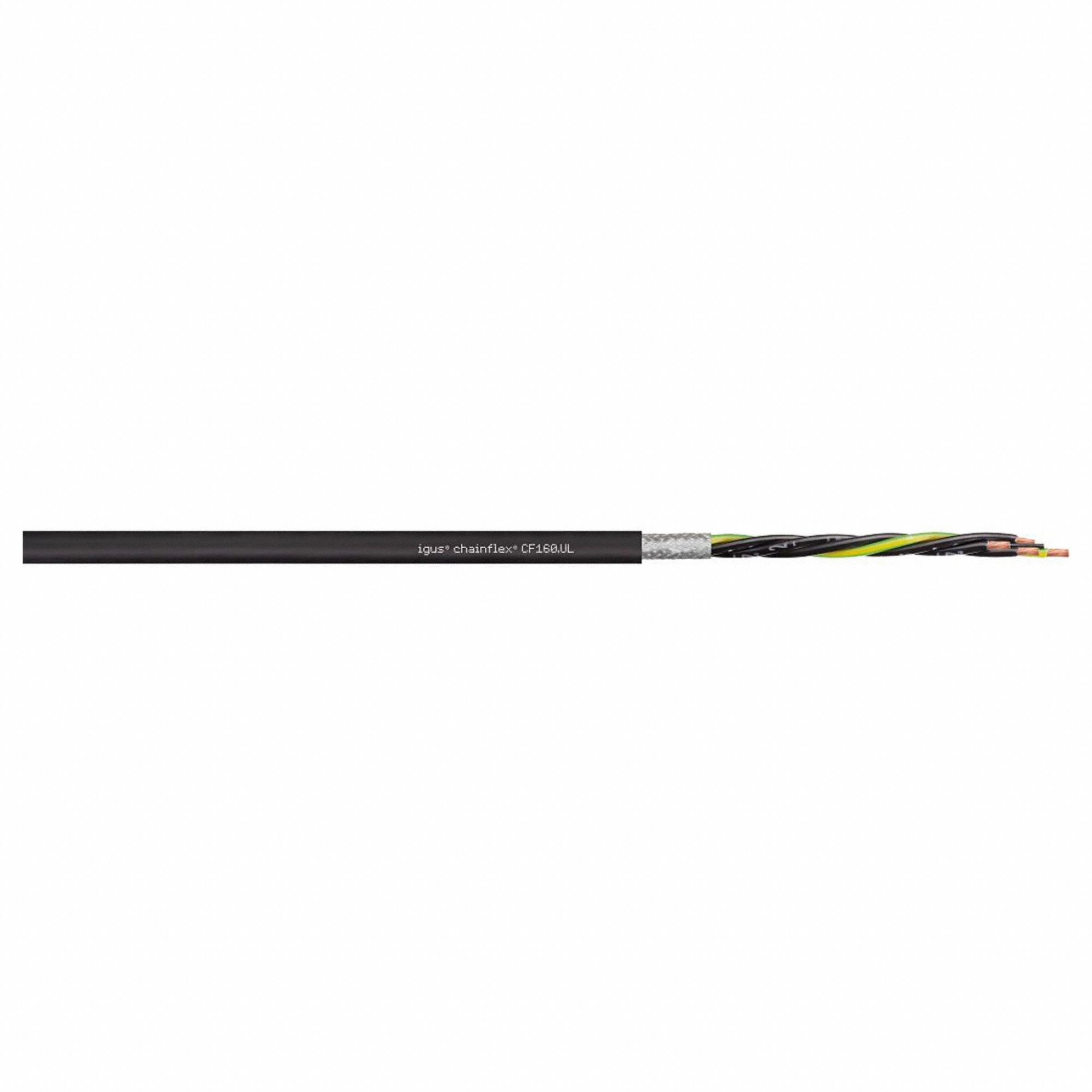

The CHAINFLEX Control Cable (MPN CF160-UL-25-04) is a shielded continuous flexing exposed run tray cable with 14 AWG conductor size and 4 conductors. It features a minimum bend radius factor of 4 x OD for fixed installations and 6 x OD for flexible applications, with a PVC jacket. This cable is sold by the foot and is designed for industrial control applications requiring continuous flexing.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	PVC, Order by the Foot, Black
Brand	CHAINFLEX
Shielding	Shielded
Conductors	4
Conductor Size	14 AWG
Manufacturer Part Number	CF160-UL-25-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
