Chainflex 3G-OTH-45572 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-45572 CHAINFLEX Control Cable: 26 AWG, 36 Conductors, Order by the Foot, PUR Jacket, 300 V (MPN CF2-01-36). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: DIN EN 50363-10-2.
Brand: Chainflex

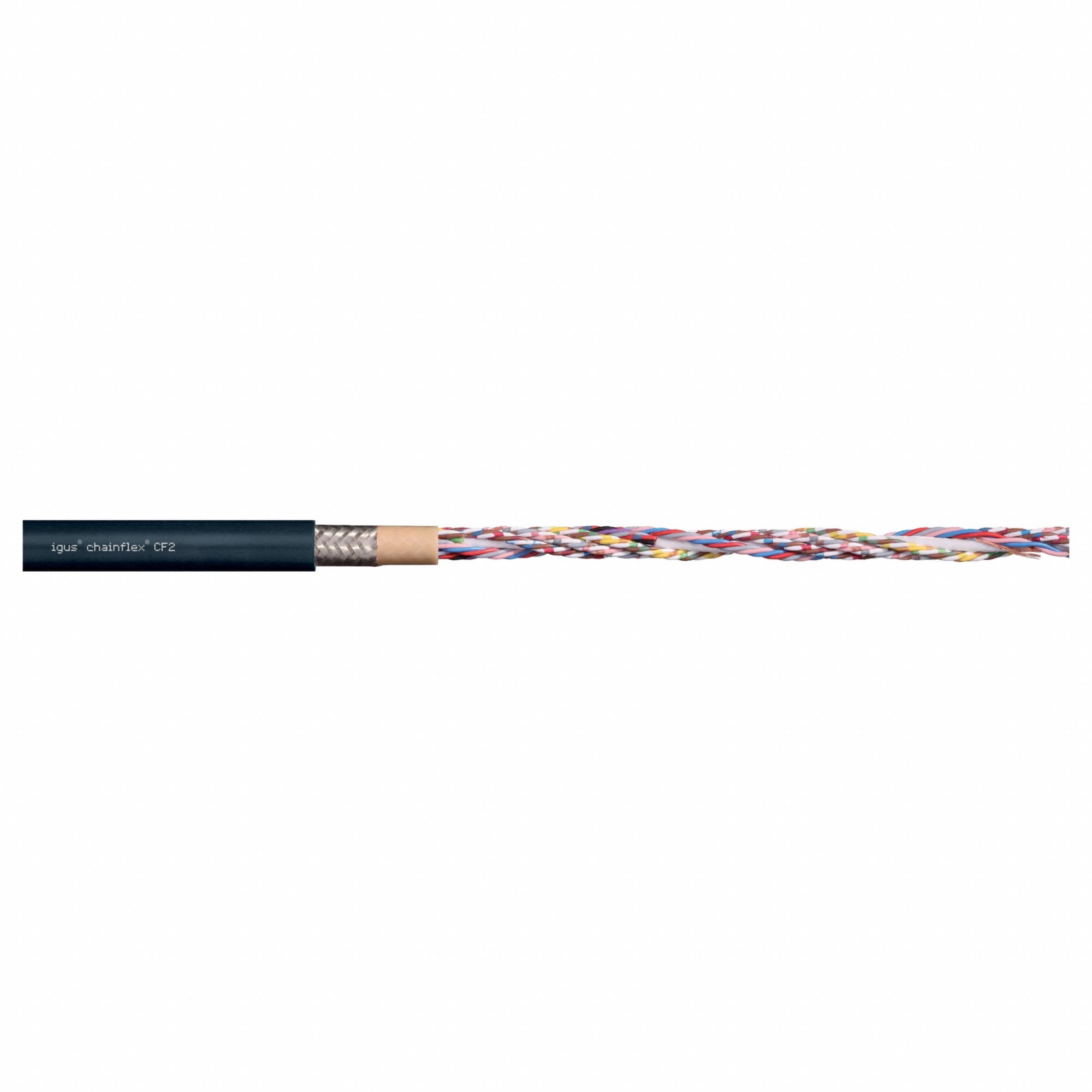

The CHAINFLEX Control Cable: 26 AWG is a continuous flexing control cable from the Chainflex CF2 series, featuring 36 conductors of single copper wire with a PUR jacket rated at 300 V. It is UV/sunlight resistant and complies with DIN EN 50363-10-2, with minimum bend radius factors of 3 x OD for fixed installation, 4 x OD for flexible use, and 5 x OD for e-chain applications. This cable does not include a ground conductor and is sold by the foot.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PUR Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	DIN EN 50363-10-2
Conductors	36
Cable Series	CF2
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF2-01-36
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
