Chainflex 3G-OTH-54455 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-54455 CHAINFLEX Control Cable: 22 AWG, 18 Conductors, Order by the Foot, PVC Jacket, 600 V (MPN CF5-03-18). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Oil and Grease Resistant; Standards: VW-1.
Brand: Chainflex

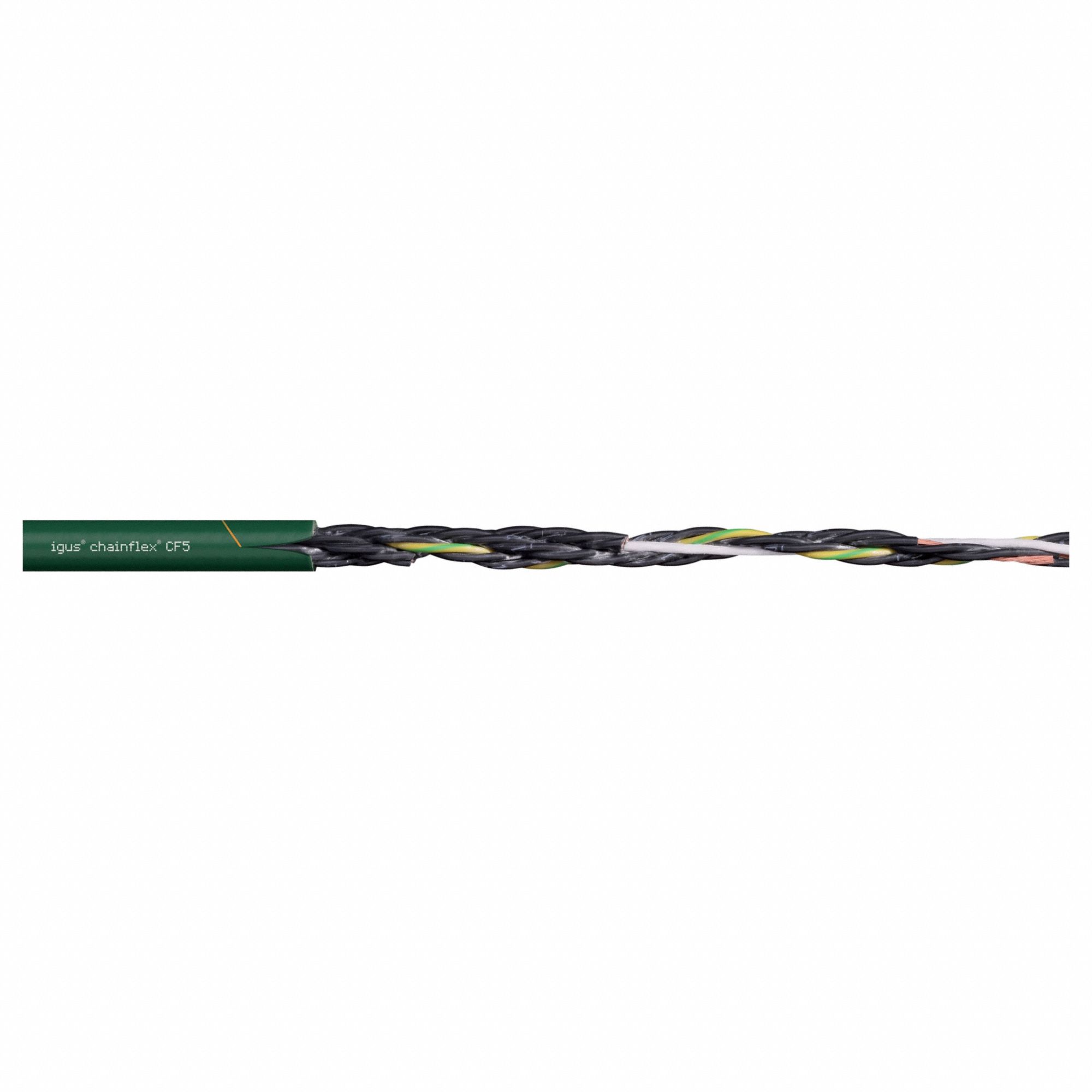

The CHAINFLEX Control Cable: 22 AWG is a continuous flexing control cable from the Chainflex CF5 series, featuring 18 conductors of single copper wire with a PVC jacket rated at 600 V. It is oil and grease resistant, complies with VW-1 standards, and offers minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications. This cable does not include a ground conductor and is sold by the foot.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	VW-1
Conductors	18
Cable Series	CF5
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF5-03-18
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
