Chainflex 3G-OTH-51153 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-51153 CHAINFLEX Control Cable: 17 AWG, 5 Conductors, Order by the Foot, PVC Jacket, 600 V (MPN CF5-10-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Flame Retardant; Standards: WTTC UL 2277.
Brand: Chainflex

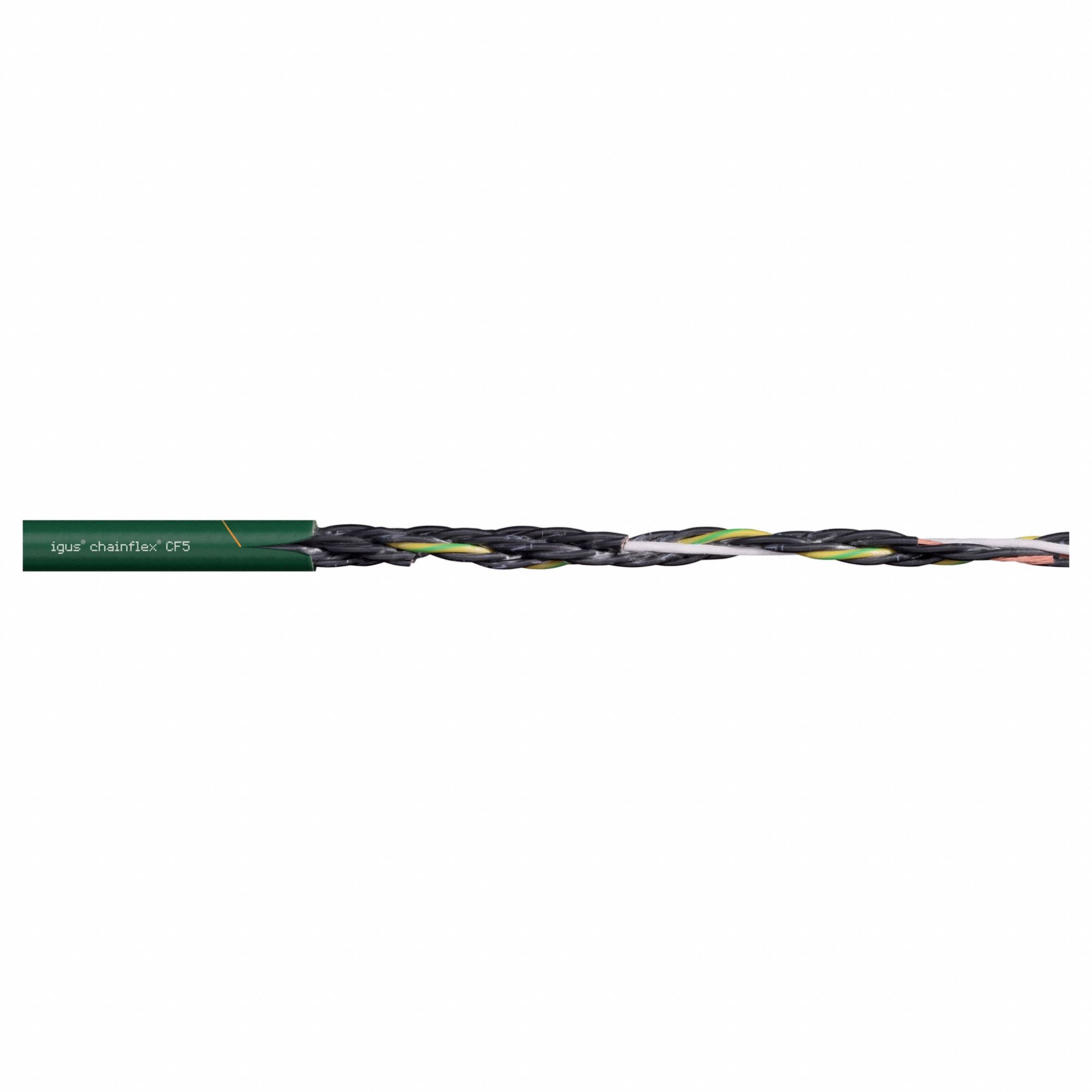

The CHAINFLEX Control Cable: 17 AWG is a continuous flexing control cable from the Chainflex CF5 series, featuring 5 conductors of single copper wire with a PVC jacket rated at 600 V. It includes a ground conductor and is flame retardant, meeting WTTC UL 2277 standards. The cable supports fixed, flexible, and e-chain installations with minimum bend radius factors of 4 x OD, 5 x OD, and 6.8 x OD respectively.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	WTTC UL 2277
Conductors	5
Cable Series	CF5
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF5-10-05
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
