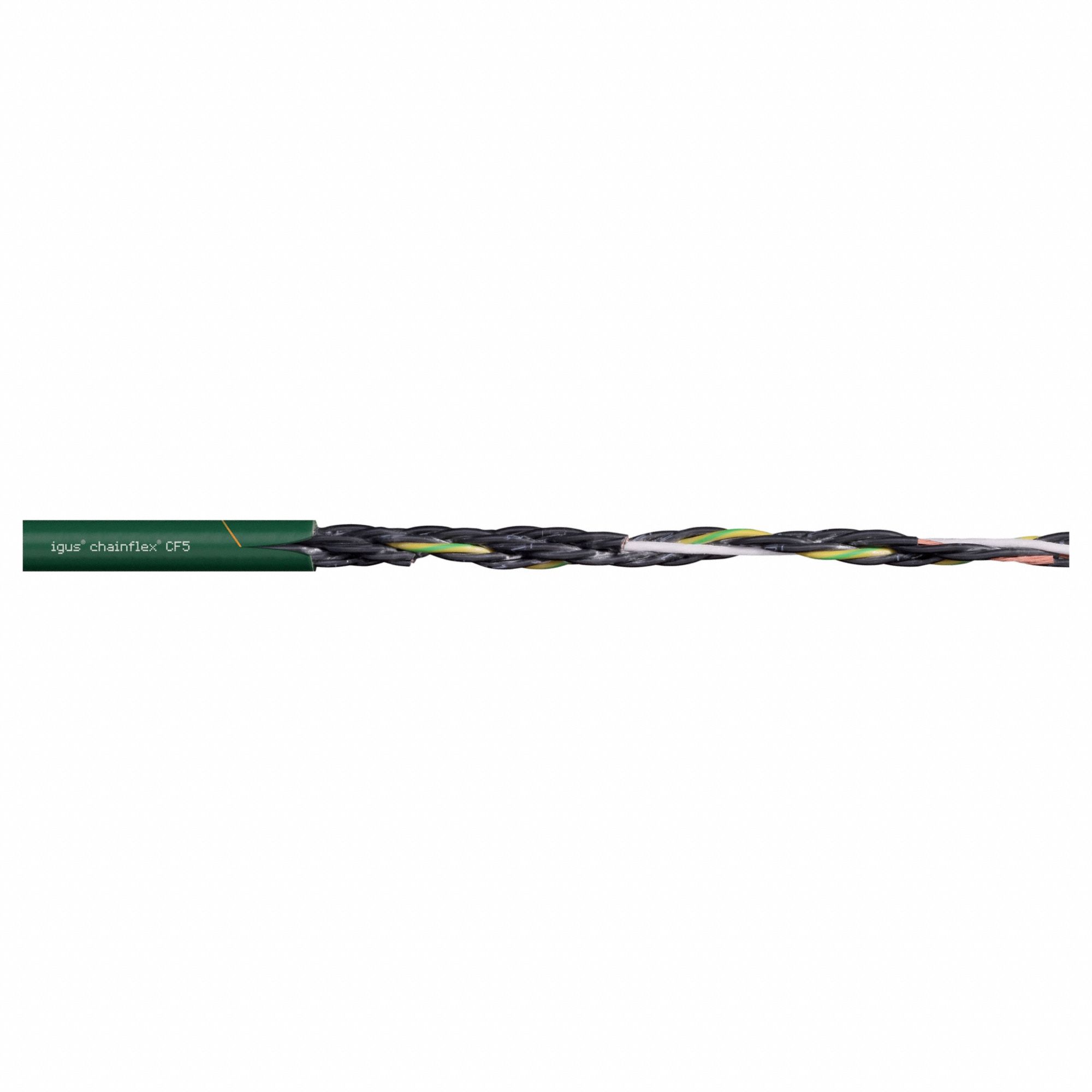

Chainflex 3G-OTH-51833 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-51833 CHAINFLEX Control Cable: 17 AWG, 7 Conductors, Order by the Foot, PVC Jacket, 600 V (MPN CF5-10-07). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Flame Retardant; Standards: Cable Flame.
Brand: Chainflex

The CHAINFLEX Control Cable: 17 AWG is a continuous flexing control cable from the Chainflex CF5 series. This 7-conductor, single-conductor-configuration cable features a copper conductor, PVC jacket, and a 600 V rating, with a minimum bend radius factor of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications. It includes a ground conductor and is flame retardant, meeting Cable Flame standards.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 600 V
Brand	CHAINFLEX
Series	Chainflex
Standards	Cable Flame
Conductors	7
Cable Series	CF5
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF5-10-07
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
