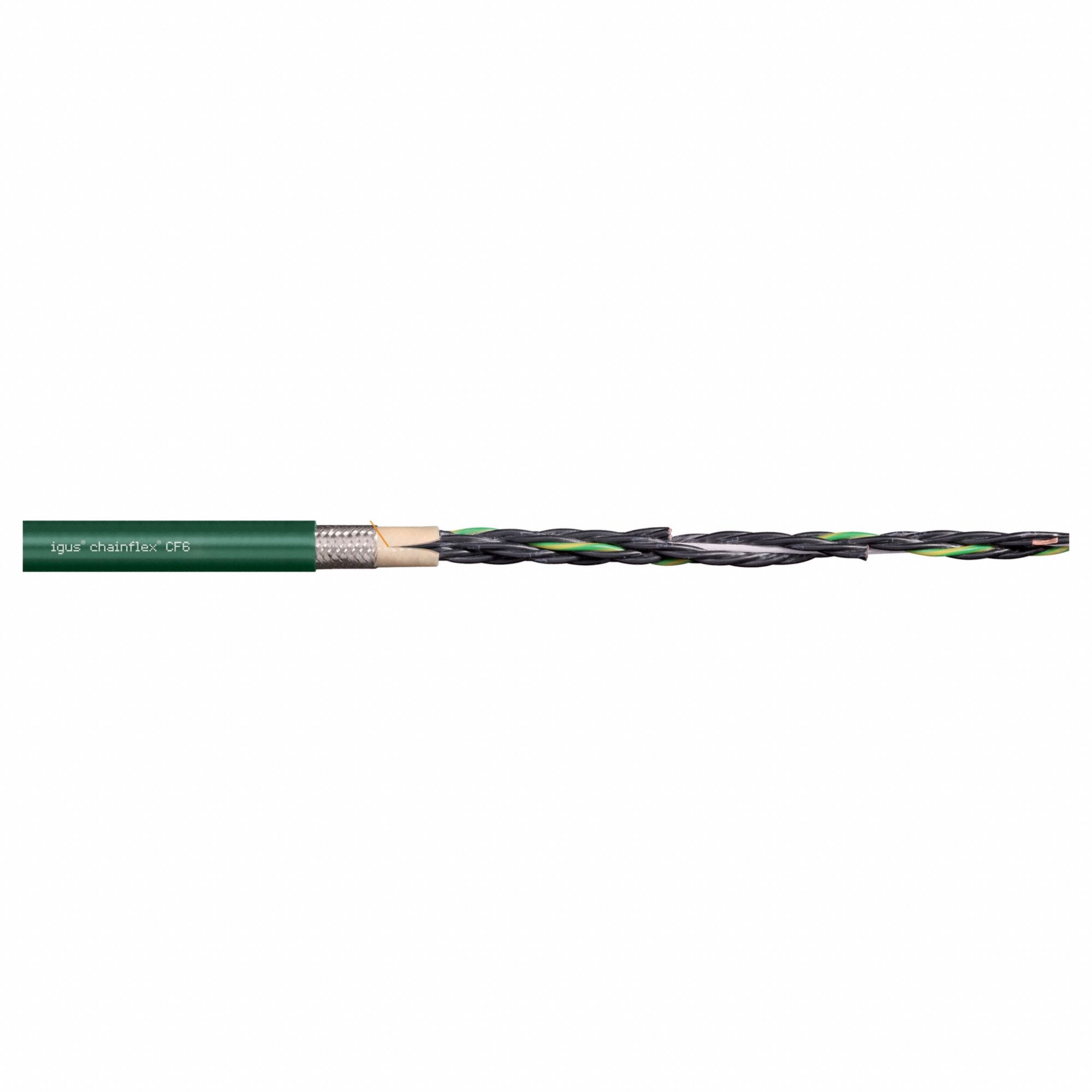

Chainflex 3G-OTH-50870 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-50870 CHAINFLEX Control Cable: 16 AWG, 36 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF6-15-36). Key specifications — Conductor Material: Copper; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: IEC 60332-1-2; Product Type: Control Cable.
Brand: Chainflex

The CHAINFLEX Control Cable: 16 AWG is a continuous flexing control cable from the CF6 series, featuring 36 copper conductors with a PVC jacket rated at 300 V. It includes a ground conductor and is UV/sunlight resistant, with minimum bend radius factors of 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications. This cable complies with IEC 60332-1-2 standards and is sold by the foot.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Standards	IEC 60332-1-2
Conductors	36
Cable Series	CF6
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Manufacturer Part Number	CF6-15-36
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
