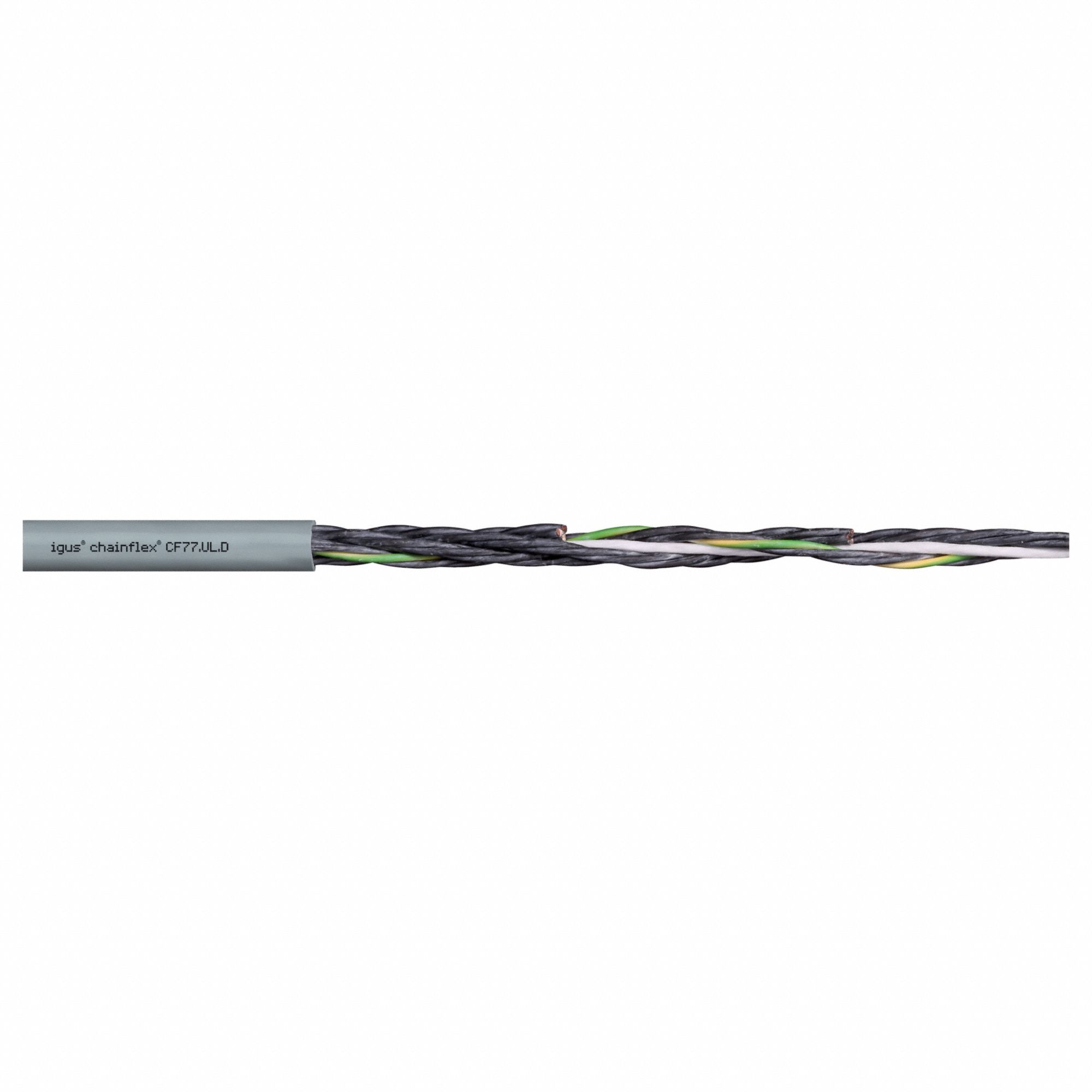

Chainflex 3G-OTH-51937 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-51937 CHAINFLEX Control Cable: 17 AWG, 12 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF77-UL-10-12). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Coolant Resistant; Standards: EN 50267-2-1.
Brand: Chainflex

The CHAINFLEX Control Cable: 17 AWG is a continuous flexing control cable from the Chainflex series, model CF77-UL-10-12, featuring 12 conductors with a PUR jacket and rated at 1,000 V. It includes a ground conductor, uses single copper conductors, and is coolant resistant. The cable meets EN 50267-2-1 standards and has minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PUR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	EN 50267-2-1
Conductors	12
Cable Series	CF77-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Coolant Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF77-UL-10-12
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
