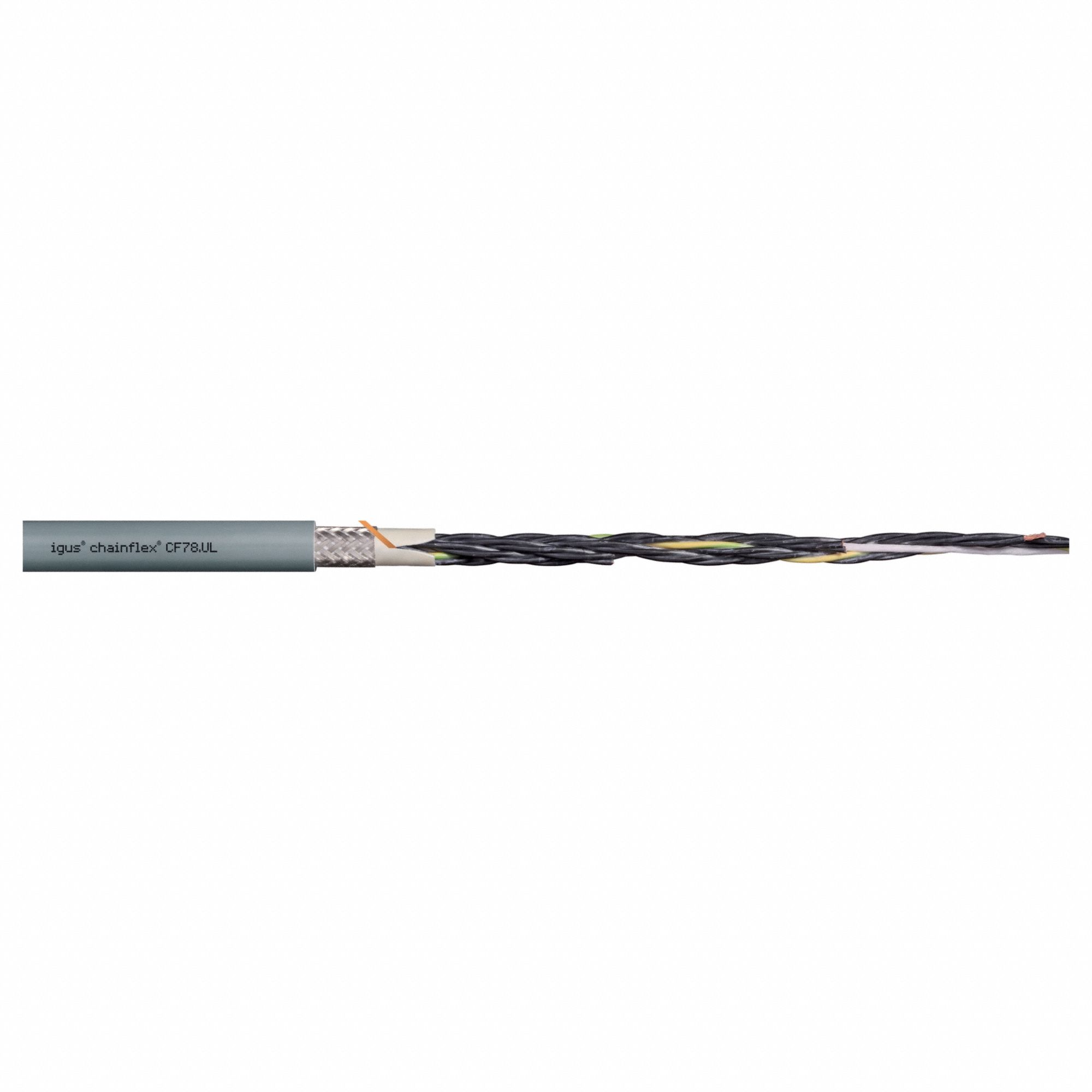

Chainflex 3G-OTH-50657 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-50657 CHAINFLEX Control Cable: 16 AWG, 18 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF78-UL-15-18). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CTP C-DE.PB49.B.00449.
Brand: Chainflex

The CHAINFLEX Control Cable: 16 AWG is a continuous flexing control cable from the Chainflex CF78-UL series, featuring 18 conductors of single copper wire with a PUR jacket and a 1,000 V rating. It includes a ground conductor and is oil and grease resistant, with minimum bend radius factors of 4 x OD for fixed, 5 x OD for flexible, and 6.8 x OD for e-chain applications. This cable meets standard CTP C-DE.PB49.B.00449 and is sold by the foot.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PUR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	CTP C-DE.PB49.B.00449
Conductors	18
Cable Series	CF78-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF78-UL-15-18
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
