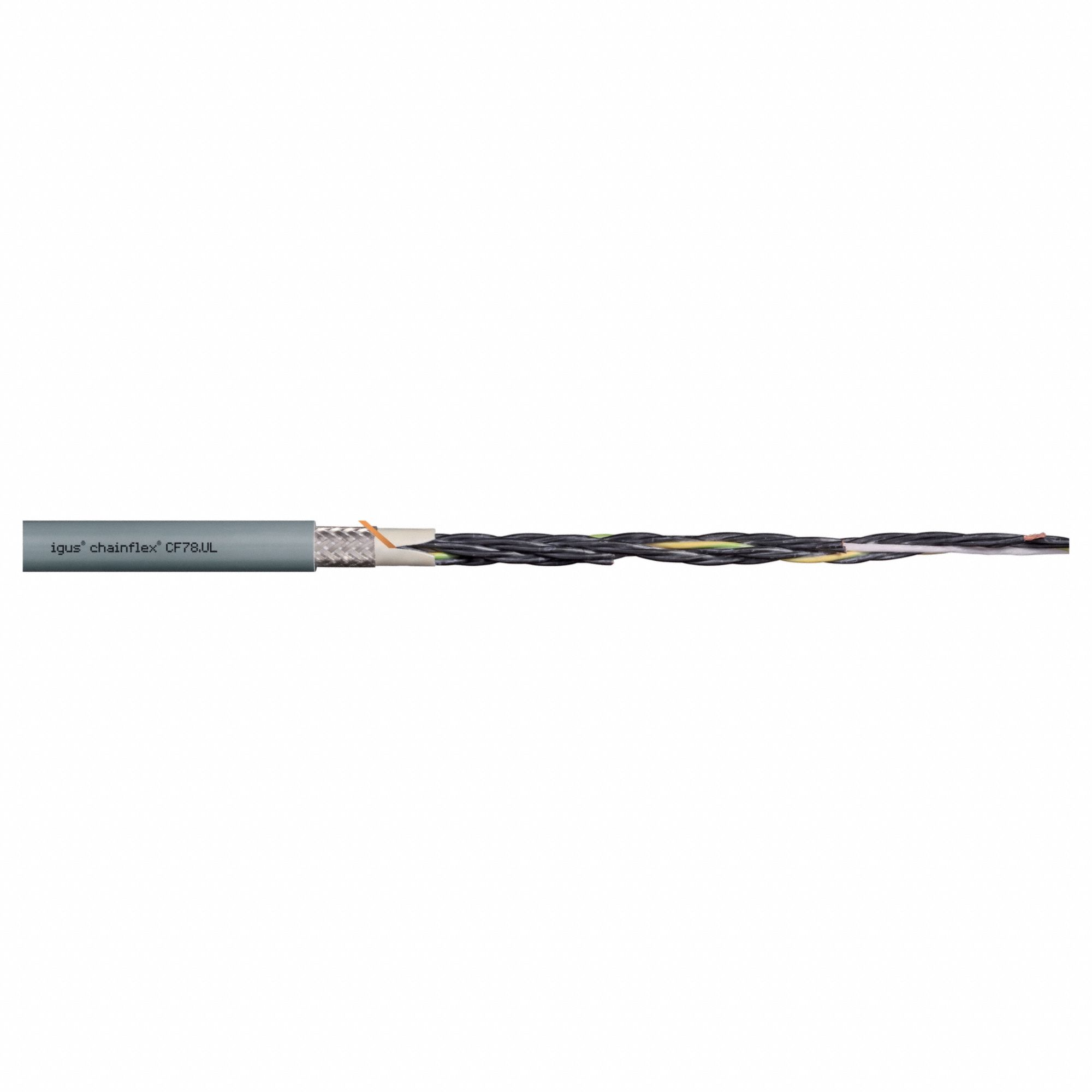

Chainflex 3G-OTH-54248 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-54248 CHAINFLEX Control Cable: 16 AWG, 25 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF78-UL-15-25Y). Key specifications — Conductor Material: Copper; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CE 2014/35/EU; Product Type: Control Cable.
Brand: Chainflex

The CHAINFLEX Control Cable: 16 AWG is a continuous flexing control cable from the CF78-UL series, featuring 25 conductors, a PUR jacket, and a 1,000 V rating. It includes a copper ground conductor and is oil and grease resistant, with minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications. This cable complies with CE 2014/35/EU standards and is sold by the foot.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PUR Jacket, 1,000 V
Brand	CHAINFLEX
Standards	CE 2014/35/EU
Conductors	25
Cable Series	CF78-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Manufacturer Part Number	CF78-UL-15-25Y
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
