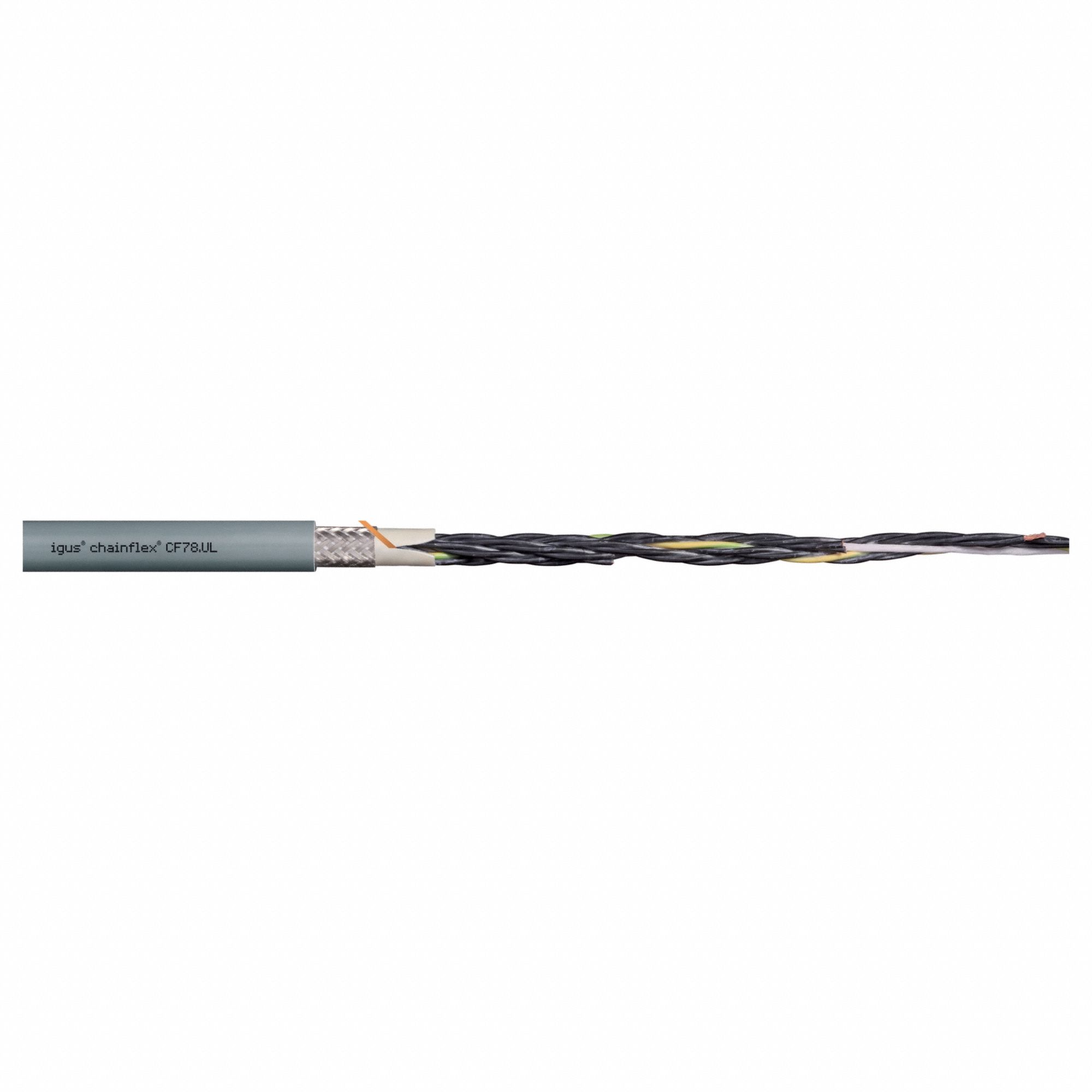

Chainflex 3G-OTH-54077 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-54077 CHAINFLEX Control Cable: 14 AWG, 3 Conductors, Order by the Foot, PUR Jacket, 1,000 V (MPN CF78-UL-25-03). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Antimicrobial; Standards: DIN EN 50363-10-2.
Brand: Chainflex

The CHAINFLEX Control Cable: 14 AWG is a continuous flexing control cable from the Chainflex CF78-UL series. This 3-conductor, single-conductor-configuration cable features a copper conductor with black and white numbering, a PUR jacket, and a 1,000 V rating. It includes a ground conductor, offers antimicrobial resistance, and meets DIN EN 50363-10-2 standards, with minimum bend radius factors of 4 x OD (fixed), 5 x OD (flexible), and 6.8 x OD (e-chain).

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PUR Jacket, 1,000 V
Brand	CHAINFLEX
Series	Chainflex
Standards	DIN EN 50363-10-2
Conductors	3
Cable Series	CF78-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Antimicrobial
Conductor Configuration	Single
Manufacturer Part Number	CF78-UL-25-03
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
