Chainflex 3G-OTH-54093 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-54093 CHAINFLEX Control Cable: 20 AWG, 5 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF880-05-05). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 7 x OD; Minimum Bend Radius Factor - Flexible: 10 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 12.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: 2011/65/EU (RoHS Compliant-II).
Brand: Chainflex

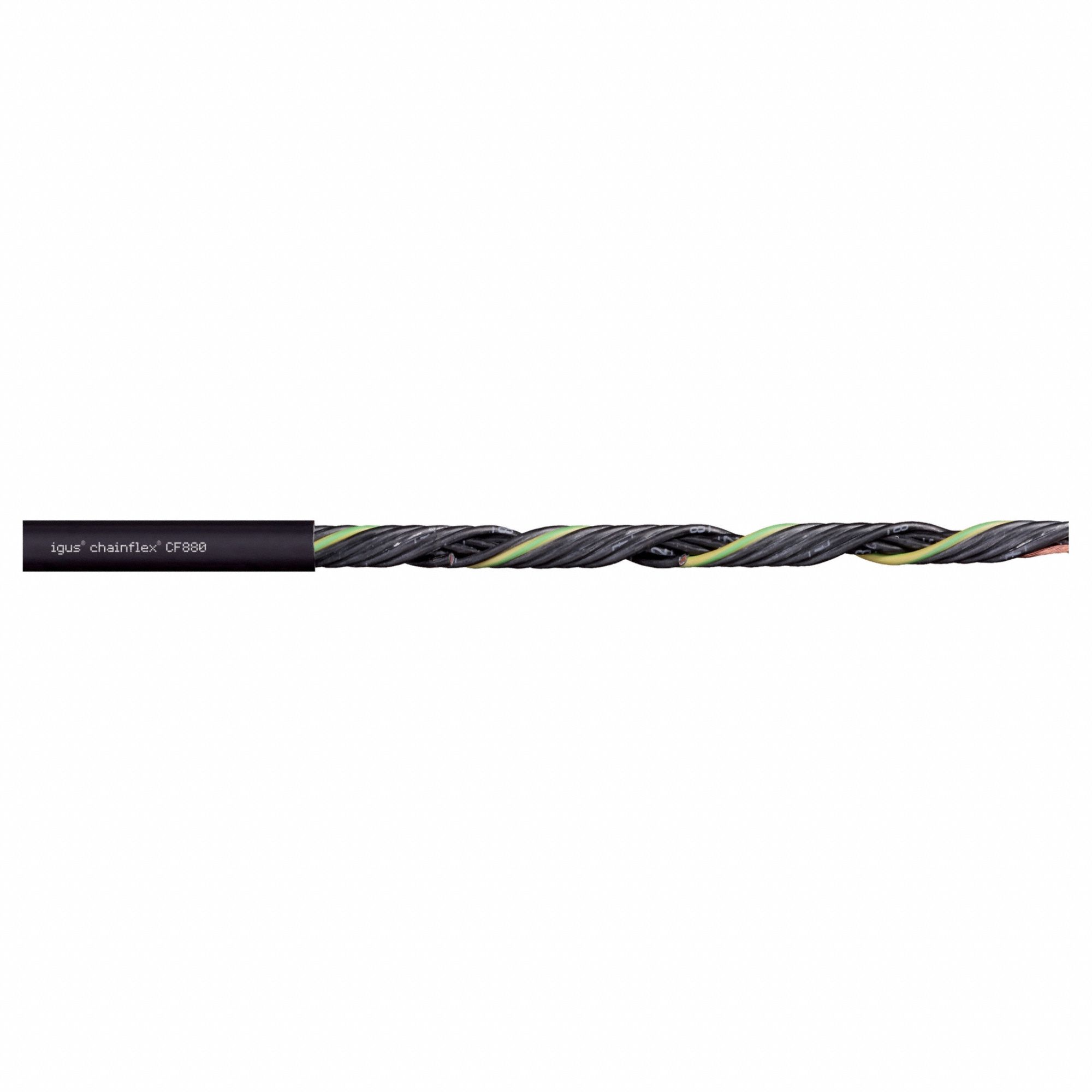

The CHAINFLEX Control Cable: 20 AWG (SKU 801JY5) is a continuous flexing control cable from the Chainflex CF880 series. This 5-conductor, single-conductor-configuration cable features a copper conductor, PVC jacket, 300 V rating, and includes a ground. It is oil and grease resistant, RoHS Compliant-II (2011/65/EU), with minimum bend radius factors of 7 x OD for fixed, 10 x OD for flexible, and 12.5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Order by the Foot, PVC Jacket, 300 V
Brand	CHAINFLEX
Series	Chainflex
Standards	2011/65/EU (RoHS Compliant-II)
Conductors	5
Cable Series	CF880
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF880-05-05
Minimum Bend Radius Factor - Fixed	7 x OD
Minimum Bend Radius Factor - E-Chain	12.5 x OD
Minimum Bend Radius Factor - Flexible	10 x OD
